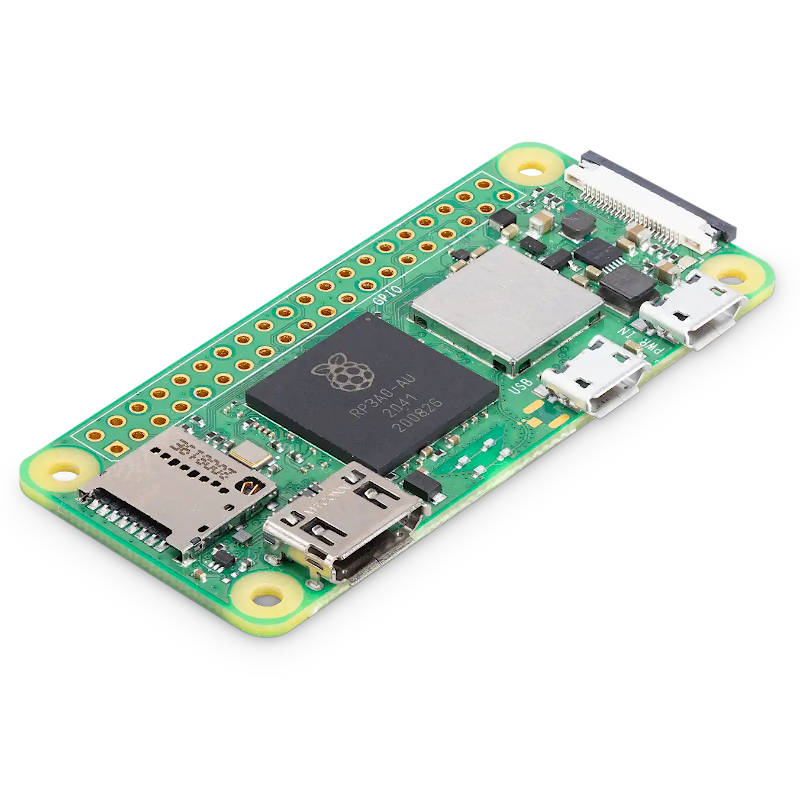

Raspberry Pi Zero 2W with Header - SC0721

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Just as small. Five times as fast.

At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero.

Wireless LAN is built in to a shielded enclosure with improved RF compliance, giving you more flexibility when designing with Raspberry Pi Zero 2 W.

All in the same tiny 65mm × 30mm form factor.

Specification

• 1GHz quad-core 64-bit Arm Cortex-A53 CPU

• 512MB SDRAM

• 2.4GHz 802.11 b/g/n wireless LAN

• Bluetooth 4.2, Bluetooth Low Energy (BLE), onboard antenna

• Mini HDMI® port and micro USB On-The-Go (OTG) port

• microSD card slot

• CSI-2 camera connector

• HAT-compatible 40-pin header footprint (unpopulated)

• H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)

• OpenGL ES 1.1, 2.0 graphics

• Micro USB power

• Composite video and reset pins via solder test points

• 65mm x 30mm

Documents

• Getting started guide

• Raspberry Pi Zero 2 W product brief
