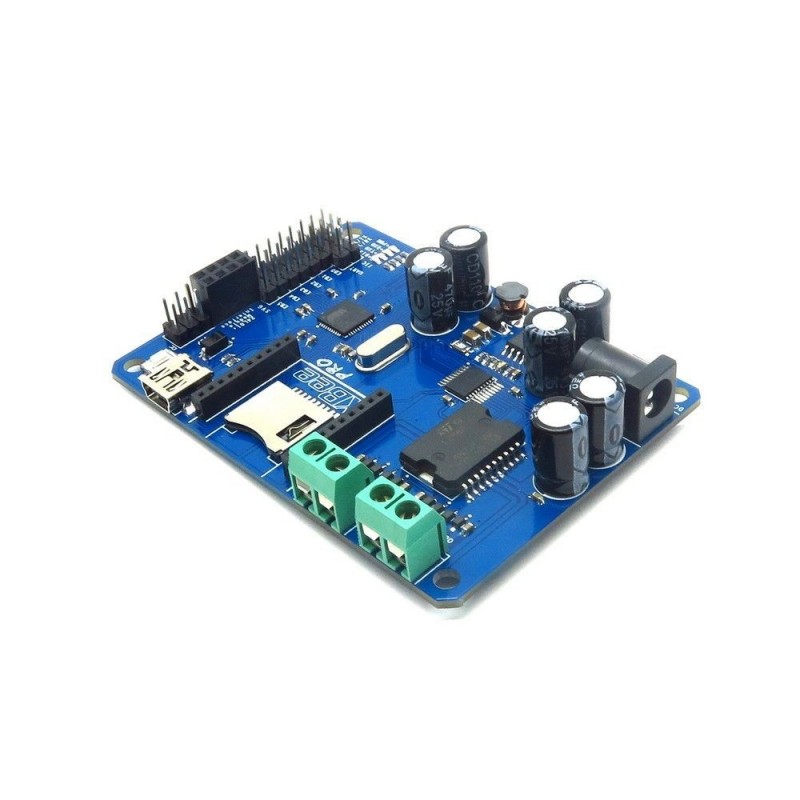

Mboard
The MBoard is a unique Arduino board which features a L298P motor driver and an ATMega32U4. Use this board you can drive the DC motor directly and stepper motor with software IO control. This board will add wireless as well as motor control connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!
Overview
The MBoard is a unique Arduino board which features a L298P motor driver, an XBee socket, nRF24L01+ module interface, Micro SD socket and an ATMega32U4. The bootloader of Mboard is based on Arduino Leonardo. With motor driver chip L298P, this board can drive the DC motor directly and stepper motor with software IO control. This board will add wireless as well as motor control connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.
Microcontroller |
ATMega32U4 |
---|---|
Max Frequency |
16M |
RAM Capacity |
2K |
FLASH Capacity |
32K |
External Resources |
|
Power Supply |
|
I/O Operation Level |
|
Board Size |
80.77mm x 57.66mm |
Model |
IM121126001 |
Version |
1.0 |
Weight |
60.00g |
Accessories |
No |
Datasheet
Schematic
Fritzing Parts
