AS5600 12bit Magnetic Angle Sensor Encoder Module

:SEN20011
€4.90
Tax included

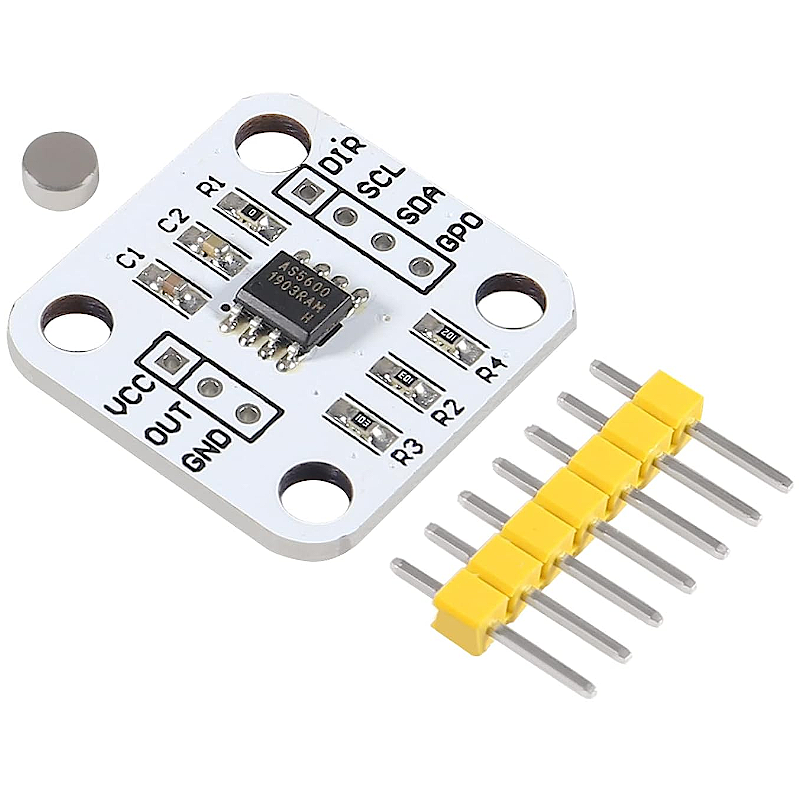

An encoder module that can very accurately measure an angle of, for example, an axis by means of a magnetic field. In order for the sensor to work, the diametrically magnetized magnet must be attached to a shaft (e.g. with glue). The sensor must then be mounted just above it (maximum ~2mm).

By default, the module works on 3.3V (both power supply and signals). However, if the resistor R1 is removed, it is also possible to operate the module at 5V.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



The AS5600 is an easy to program magnetic rotary position sensor with a high-resolution 12-bit analog or PWM output. This
contactless system measures the absolute angle of a diametric magnetized on-axis magnet.

This AS5600 is designed for contactless potentiometer applications and its robust design eliminates the influence of any homogenous external stray magnetic fields.

The industry-standard I²C interface supports simple user programming of non-volatile parameters without requiring a dedicated programmer. By default the output represents a range from 0 to 360 degrees.

It is also possible to define a smaller range to the output by programming a zero angle (start position) and a maximum angle (stop position). The AS5600 is also equipped with a smart low power mode feature to automatically reduce the power consumption.

An input pin (DIR) selects the polarity of the output with regard to rotation direction. If DIR is connected to ground, the output value increases with clockwise rotation. If DIR is connected to VDD, the output value increases with counterclockwise rotation.

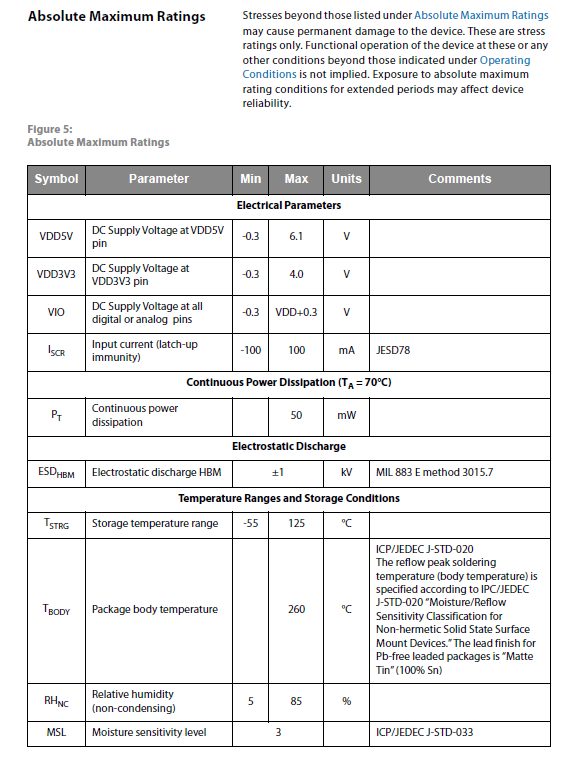

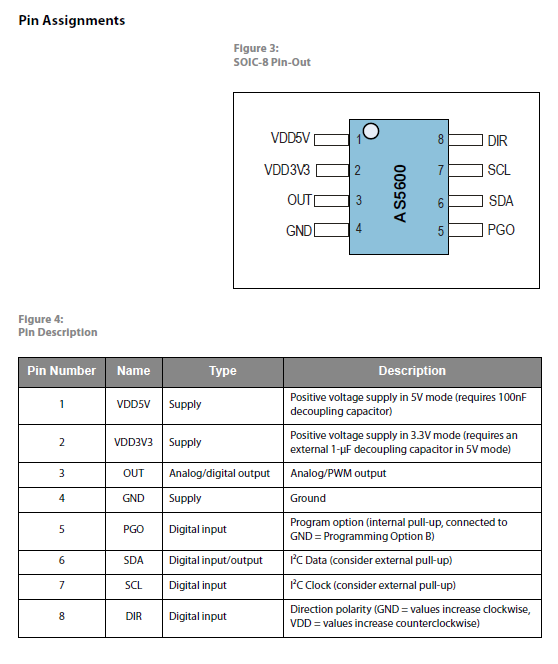

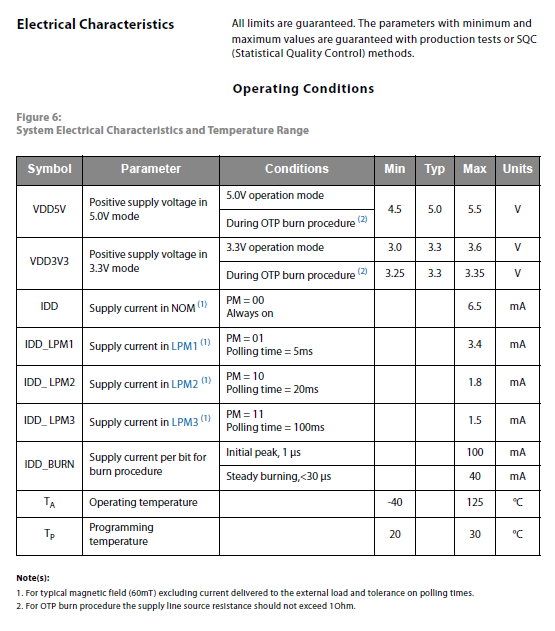

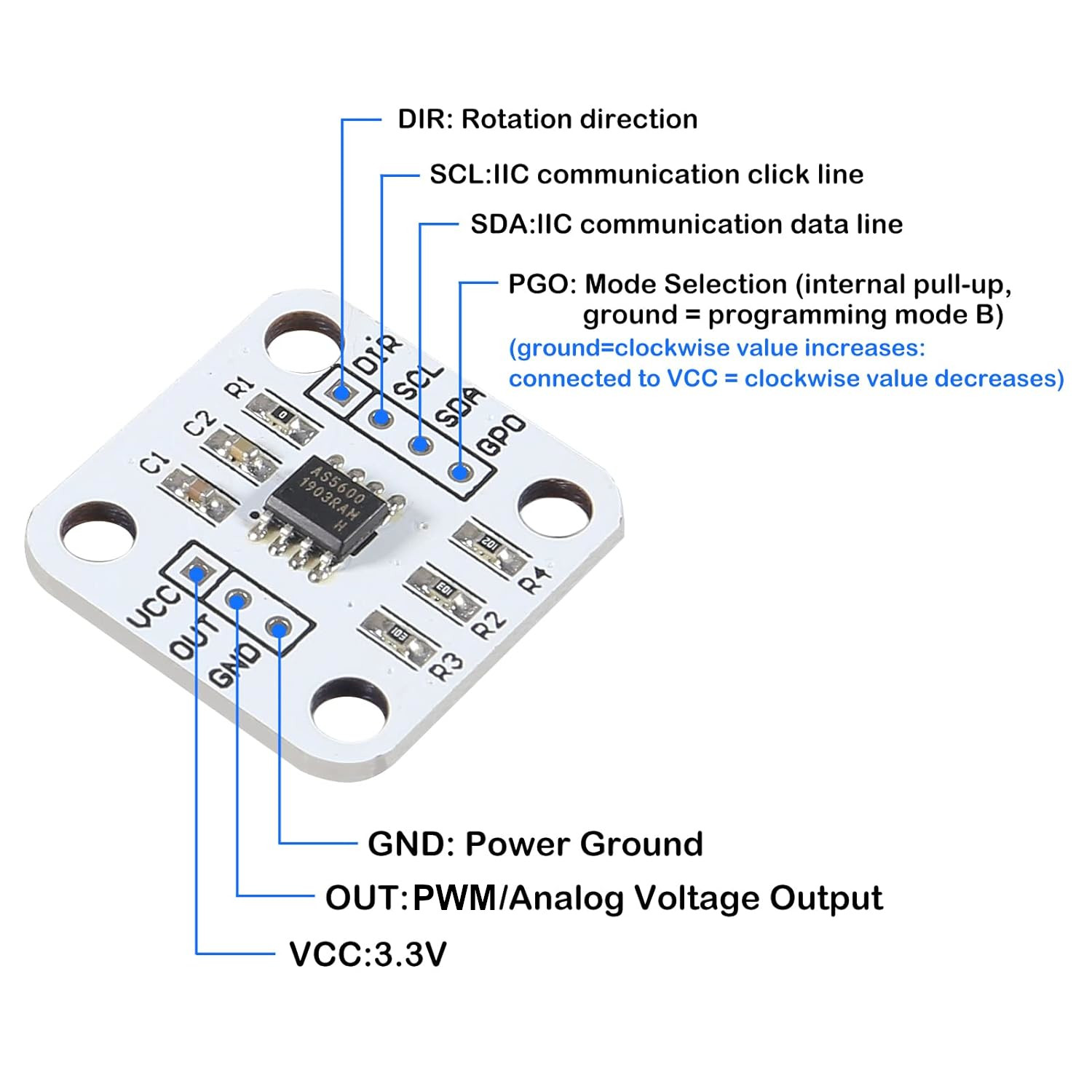

Interfaces:

  • VCC: 3.3V
  • GND: Power Ground
  • OUT: PWM/Analog Voltage Output
  • DIR: Rotation Direction(Grounding= Clockwise Value Increase; Connect to VCC= Clockwise Value Decrease)
  • SCL: IIC Communication Clock Line
  • SDA: IIC Communication Data Line
  • GPO: Mode Selection(Internal Pull-Up,Ground=Programming Mode B)
  • GPO: Mode Selection(Internal Pull-Up,Ground=Programming Mode B)



SEN20011
