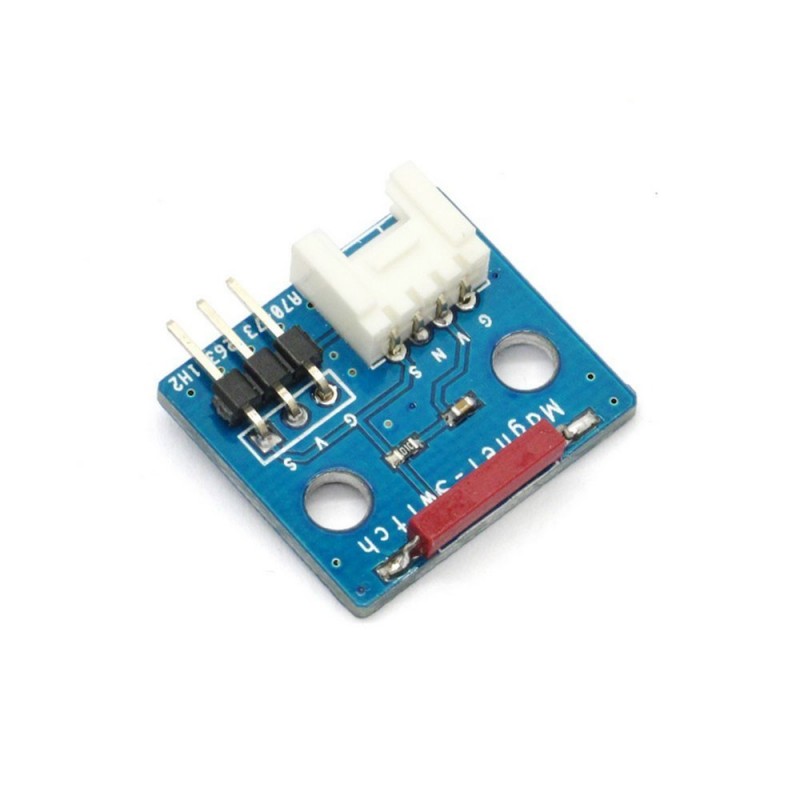

Electronic Brick - Magnetic Sensor/Switch Brick
  • Electronic Brick - Magnetic Sensor/Switch Brick

Electronic Brick - Magnetic Sensor/Switch Brick

: SEN05018
€2.50
Tax included

The sensor is a double-ended type and may be actuated with an electromagnet, a permanent magnet or a combination of both.

It is based on encapsulated dry reed switch CT10. CT10 is single-pole, single throw (SPST) type, having normally open ruthenium contacts. The sensor is a double-ended type and may be actuated with an electromagnet, a permanent magnet or a combination of both.



Features

  • Electronic Brick interface
  • Minimum external parts
  • 10W rating
  • Rugged encapsulation



Programming

Connect the module with Arduino The program below shows how to use the Magnetic switch to control the led. When you put a magnet that has enough magnetic power close to the module, the switch is closed .Then the S pin out put a high voltage. You can use this to control the led.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
const int MagneticPin=9;
const int ledPin=13;
void setup()
{
 pinMode(MagneticPin, INPUT);
 pinMode(ledPin,OUTPUT);
}

void loop()
{
 int sensorValue = digitalRead(MagneticPin);
 if(sensorValue==1)
 {
    digitalWrite(ledPin,HIGH);
  }
 else
 { digitalWrite(ledPin,LOW); }
}



Specification

Brick Type Sensor Brick
Brick Interface 3PIN
Brick Power Supply 5V
Board Size 37 × 21 × 1.6mm
Weight 15.00g
Model IM120710016





SEN05018
