• DISCONTINUED

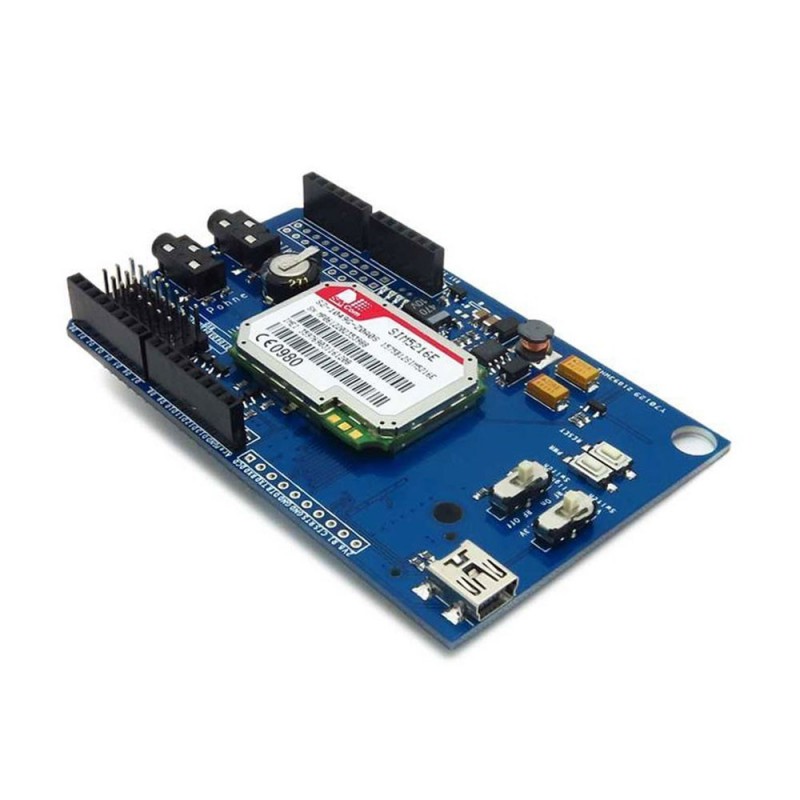

ITEAD 3G Shield
  • ITEAD 3G Shield
  • ITEAD 3G Shield
  • ITEAD 3G Shield
  • ITEAD 3G Shield
  • ITEAD 3G Shield

ITEAD 3G Shield

: ARD03094
€79.90
Tax included

DISCONTINUED

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

The 3G shield is based on SIM5216A or SIM5216E module. The 3G shield can be used for 3G communication, it is controlled via AT commands and fully compatible with Arduino. The difference between SIM5216A and SIM5216E is as folllows:

Feature

  • Multi-modules support: SIM5216A/SIM5216E/SIM5216J
  • Configurable pins for UART communication
  • With the MIC and earphone interface
  • Control via AT commands
  • RTC supported with Super Capacitor
  • Optimization of the power supply circuit
  • Operation temperature: -40℃ ~ +85℃

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.



Version 1.0
Compatible Mainboard
  • Leaf maple
  • Arduino Deumlanove/UNO
  • Arduino MEGA
  • ChipKit MAX32
  • ChipKit UNO32
  • FEZ Panda II
  • Freeduino
  • Iteadmaple
  • Iteaduino
  • Iteaduino ADK
  • Iteaduino BT
  • Iteaduino MEGA 2560
  • Simple Cortex
  • Seeeduino
Shield Functions Wireless
Board Size 91.93mm x 57.15mm
Operation Level
  • Digital 3.3V
  • Digital 5V
Stackable No
Model IM140408002
Accessories No
Weight 75.0000
ARD03094
