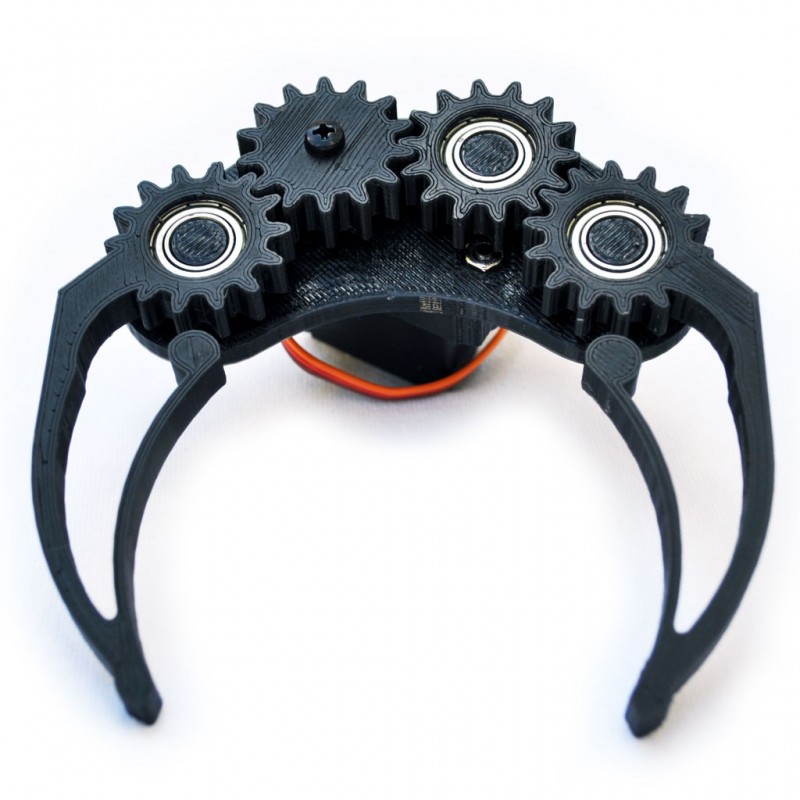

After the R & D department of botnroll.com produce a lightweight and sturdy grab, specially designed for robotics, with enough opening to grab objects with considerable volume, here comes the new Bot'n Roll Gripper V2!
Granted based on the new 3D printing technologies, the new gripper holds adaptive aspects as regards the fixing of objects between their tweezers.
The Bot'n Roll Gripper V2 is capable of a full bore impressive 186.53mm.
One of the conceived and studied in detail clamps was the modulus of elasticity, giving the clamshell "shape" the inside of the pincers so as to adapt better to different objects.
This is a product developed by Portuguese botnroll.com and recently launched in the market after several tests in order to make the gripper a reliable, robust and practical product.
Product content
- Gripper already been assemblada / mounted
- Average Servo also properly assembled to the claw
Features Bot'n Roll Gripper V2
- Product "ready to use"
- Produced in PLA
-
Print Resolution: 0.3mm
- Printing Infill: 50%
- Nuts M3 embedded
- Bearings 8mm 688zz embedded
- Weight (c/ servo): 70g
Servo features
Available for purchase here
- 180º rotation
- Power Supply: 4.8V~6.0V
- Speed: 0.20seg/60 degree (4.8V)
- Speed: 0.18seg/60 degree (6V)
- Binary: 2.8kg/cm (19.6oz/in) (4.8V)
- Binary: 3.2kg/cm (19.6oz/in) (6V)
- Dimensions: 28.8 x 13.8 x 30.2mm
