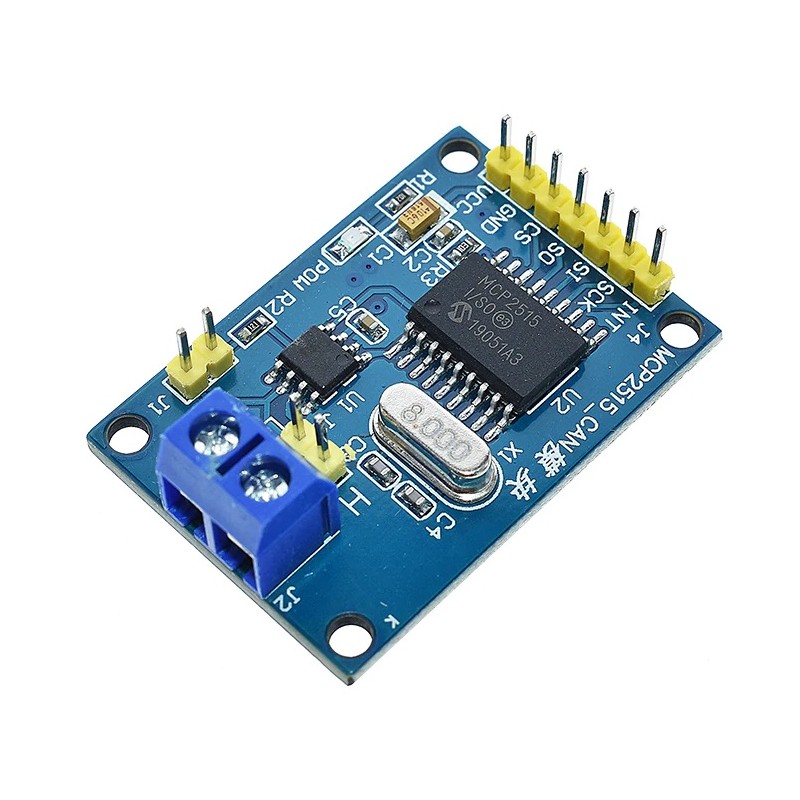

MCP2515 CAN Bus TJA1050 Receiver SPI Protocol Module

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features:

This is a MCP2515 CAN bus module with TJA1050 High speed CAN transceiver.

MCP2515 is a stand-alone Controller Area Network (CAN) controller that implements the CAN specification, Version 2.0B. It is capable of transmitting and receiving both standard and extended data and remote frames. The MCP2515 has two acceptance masks and six acceptance filters that are used to filter out unwanted messages, thereby reducing the host MCU’s overhead. The MCP2515 interfaces with microcontrollers (MCUs) via an industry standard Serial Peripheral Interface (SPI) and it is compatible with Arduino based micro-controller projects.

Specifications:

• Support CAN V2.0B specification, the communication speed 1Mb / S
• 0 to 8-byte data field
• Three frames - standard, expand the frame and remote
• DC5V power supply module & SPI interface protocol control
• 120 ohm termination resistors, Impedance matching, ensure drive capacity, long-distance data transmission against signal radiation
• Module dimensions 4. 4 x 2.8 cm/1.57*1.1" (approx.)
• Working Current - typ. 5mA & 1μA standby current
• Working Temperature - (Industrial grade) -40°C - +85°C

Arduino Library:

• https://github.com/autowp/arduino-mcp2515

Datasheets:

• MCP2515 - stand-alone CAN controller
• TJA1050 - High Speed CAN transceiver

Package includes:

• 1x MCP2515 CAN bus module TJA1050 receiver
