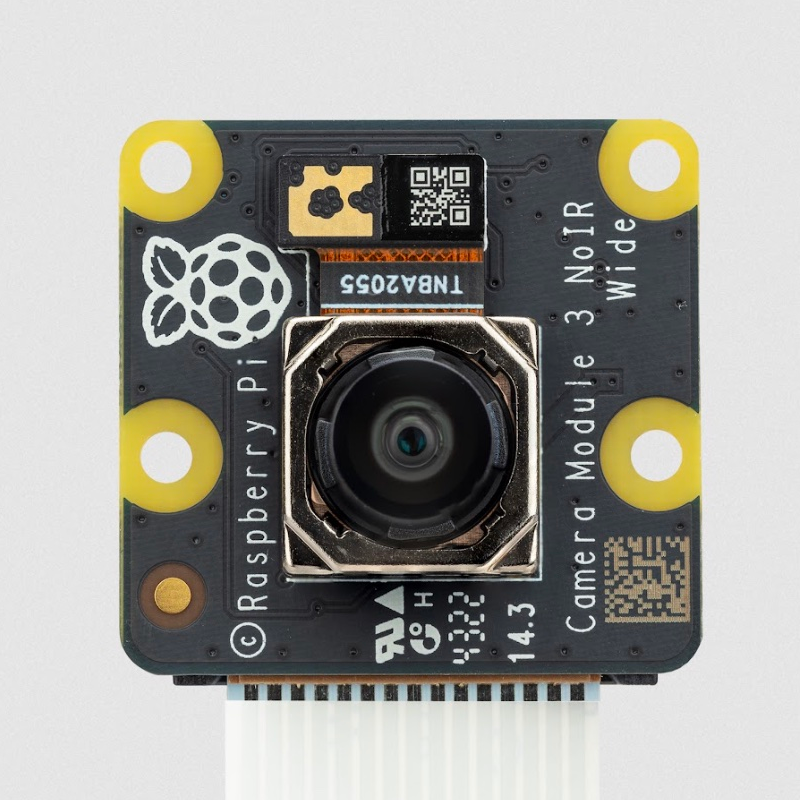

Raspberry Pi Camera Module V3 NOIR- 12MP 120°
The Raspberry Pi Camera Module 3 NoIR is the latest entry in the Official Raspberry Pi range of camera modules, offering a new 12 Megapixel Sony IMX708 image sensor, powered autofocus, improved low-light sensitivity and HDR (High Dynamic Range) support!
This NoIR version is infrared-sensitive with no InfraRed (NoIR) filter on the lens, which makes it perfect for shooting Infrared photography and taking pictures/video in low light (twilight) environments. For night photography, you'll need to flood the target with infrared light.
The new Camera Module 3 is available with a wide-angle 120° (The Standard NoIr Camera Is 76º), giving you more options for your specific project needs.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
The Raspberry Pi Camera Module 3 NoIR is the latest entry in the Official Raspberry Pi range of camera modules, offering a new 12 Megapixel Sony IMX708 image sensor, powered autofocus, improved low-light sensitivity and HDR (High Dynamic Range) support!
This NoIR version is infrared-sensitive with no InfraRed (NoIR) filter on the lens, which makes it perfect for shooting Infrared photography and taking pictures/video in low light (twilight) environments. For night photography, you'll need to flood the target with infrared light.
The new Camera Module 3 NoIr is available with a wide-angle 120° (The Standard NoIR Camera Is 76º), giving you more options for your specific project needs. We also have a standard version which is better suited for daylight photography.
Compatibility (Important!)
Accessories
-
The Camera Module 3 is mechanically identical to the previous Camera Module V2 apart from the front sensor section. The new sensor is larger and may not fit all previous camera accessories
-
We are in the process of updating each camera accessory in the store to indicate compatibility within the product descriptions
Software
-
The Camera Module 3 can only be used with libcamera - the previous raspistill/raspivid libraries will not work
-
You will need to update Raspberry Pi OS as the Camera Module 3 requires a new driver and a specific version of libcamera
Boards
-
The Camera Module 3 is compatible with all Raspberry Pi boards with a camera connector (CSI connector)
-
To use this camera with a Raspberry Pi Zero (which has a smaller connector), you will need to use an adapter cable
Features
-
Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
-
High signal-to-noise ratio (SNR)
-
Built-in 2D Dynamic Defect Pixel Correction (DPC)
-
Phase Detection Autofocus (PDAF) for rapid autofocus
-
QBC Re-mosaic function
-
HDR mode (up to 3-megapixel output)
-
CSI-2 serial data output
-
2-wire serial communication (supports I2C fast mode and fast-mode plus)
-
2-wire serial control of focus mechanism
Specifications
-
Sensor: Sony IMX708
-
Resolution: 11.9 megapixels
-
Sensor size: 7.4mm sensor diagonal
-
Pixel size: 1.4μm × 1.4μm
-
Horizontal/vertical: 4608 × 2592 pixels
-
Common video modes: 1080p50, 720p100, 480p120
-
Output: RAW10
-
IR cut filter: Not present (NoIR)
-
Autofocus system: Phase Detection Autofocus
-
Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)
-
Ribbon cable length: 150mm
-
Cable connector: 15 × 1mm FPC
-
Compliance:
-
FCC 47 CFR Part 15, Subpart B, Class B Digital Device
-
Electromagnetic Compatibility Directive (EMC) 2014/30/EU
-
Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
-
-
Production lifetime: Raspberry Pi Camera Module 3 will remain in production until at least January 2030
Lens Specifications
Wide
-
Effective focal length 2.75mm
-
f/2.2
-
Diagonal field of view 120 degrees (at 16:9)
-
35mm equivalent focal length roughly 16mm (full width) - 18mm (3:2 crop)
-
Focus 5cm - infinity
Package Contents
-
1x Raspberry Pi Camera Module 3 NoIR Wide.
-
1x 150mm camera ribbon cable (fitted to the camera module)
