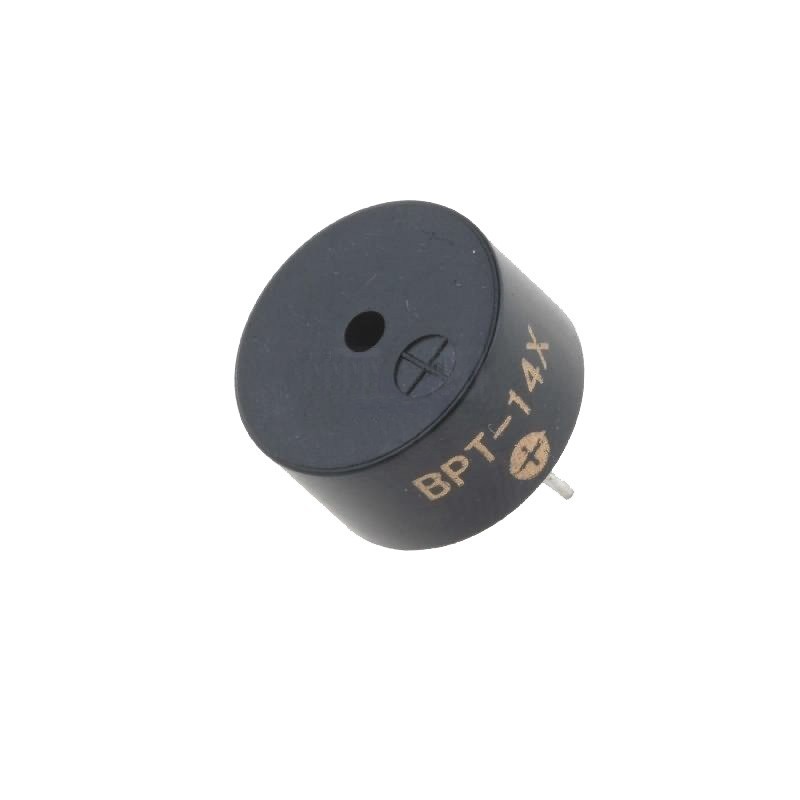

Piezo with built-in Generator 3~16V DC

: ELT03007
€1.10
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Type of sound transducer piezo alarm
Sound transducer features with built-in generator
Mounting THT
Resonant frequency 4kHz
Operating current 7mA
Operating temperature -20...70°C
Diameter 13.8mm
Height 7.5mm
Operating voltage 3...16V DC
Sound level 80dB (d=0.1 m)
Kind of sound continuous
Resonant frequency tolerance ±500Hz
Terminal pitch 7.6mm

Additional information

  • Gross weight: 1.12 g
ELT03007
