TSOP48 TO DIP48 (A), Programmer Adapter
  • TSOP48 TO DIP48 (A), Programmer Adapter
  • TSOP48 TO DIP48 (A), Programmer Adapter
  • TSOP48 TO DIP48 (A), Programmer Adapter
  • TSOP48 TO DIP48 (A), Programmer Adapter
  • TSOP48 TO DIP48 (A), Programmer Adapter

TSOP48 TO DIP48 (A), Programmer Adapter

: CEL05021
€29.45
Tax included
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Yamaichi IC Programmer Adapter for TSOP48 package

Features

  • High quality and durable
  • Tested before shipping
  • Easy to use

Supported Devices

  • Package
    • TSOP48
  • Pitch: 0.5mm
  • Width:18.4mm

Socket PN

  • IC354-0482-031P

Download

DIP Pin Header Dimensions

  • Pitch: 100mil (2.54mm)
  • Width: 600mil (1.52cm)

Note: we're going to ship the alternative A OR B randomly. As you can see in pictures below, there are nothing different between two alternatives, except the PCB sizes. They provide exactly the same functionality.

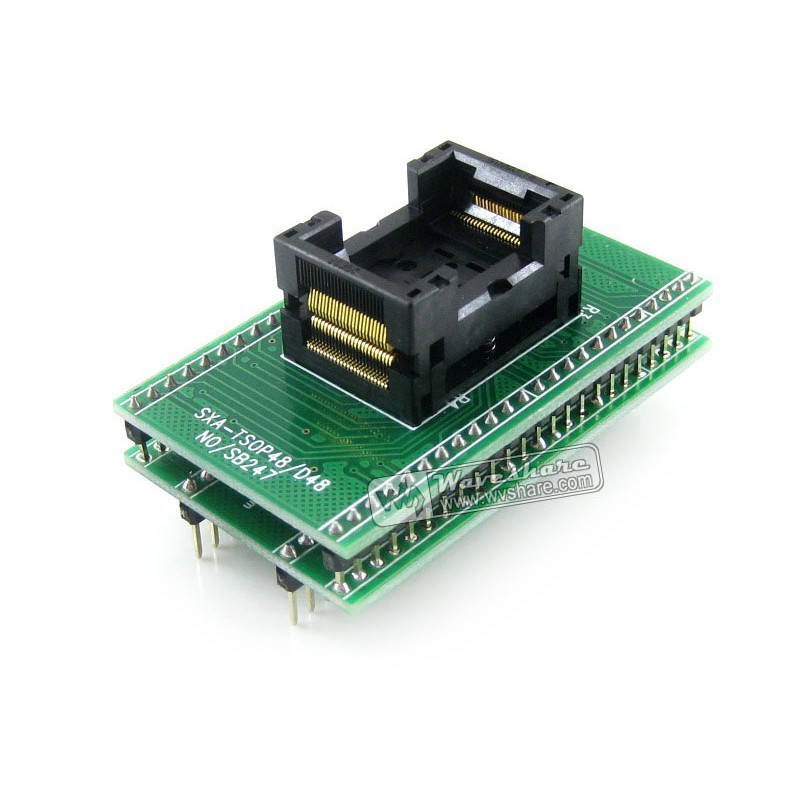

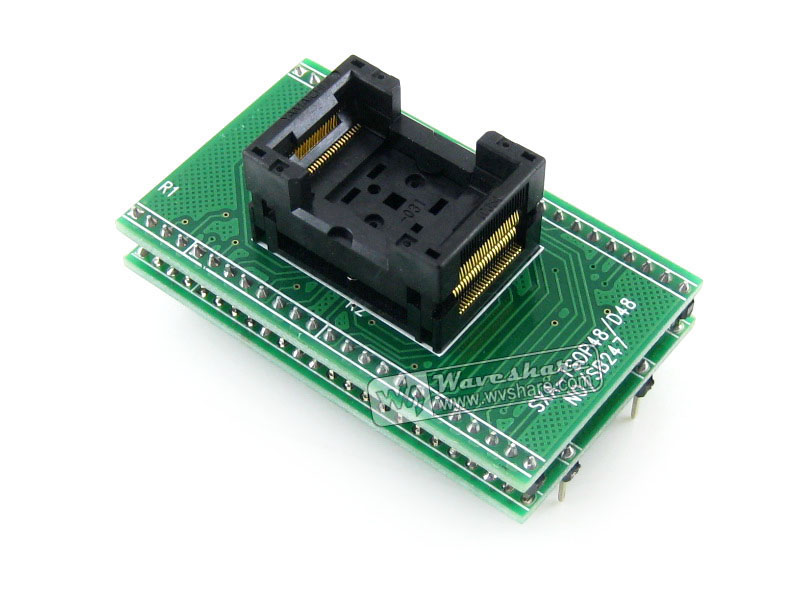

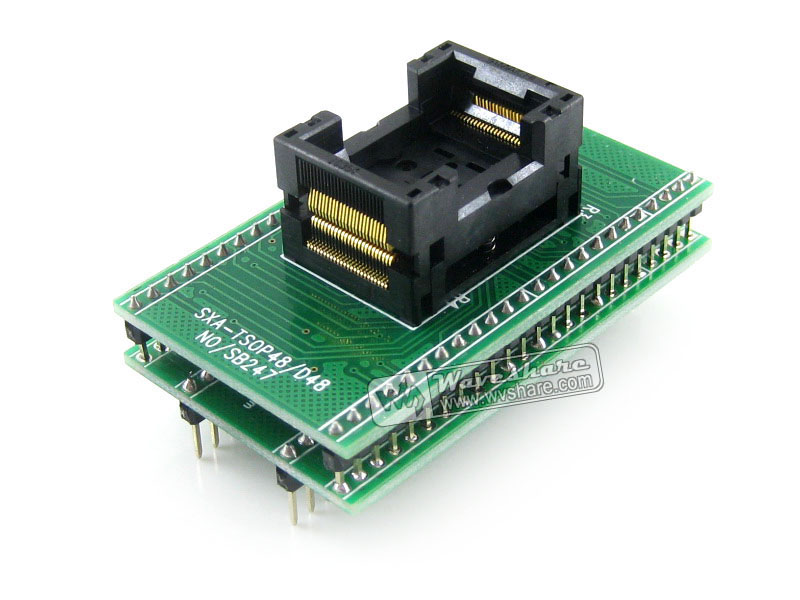

Alternative A (PCB sizes: 36mm * 62mm )

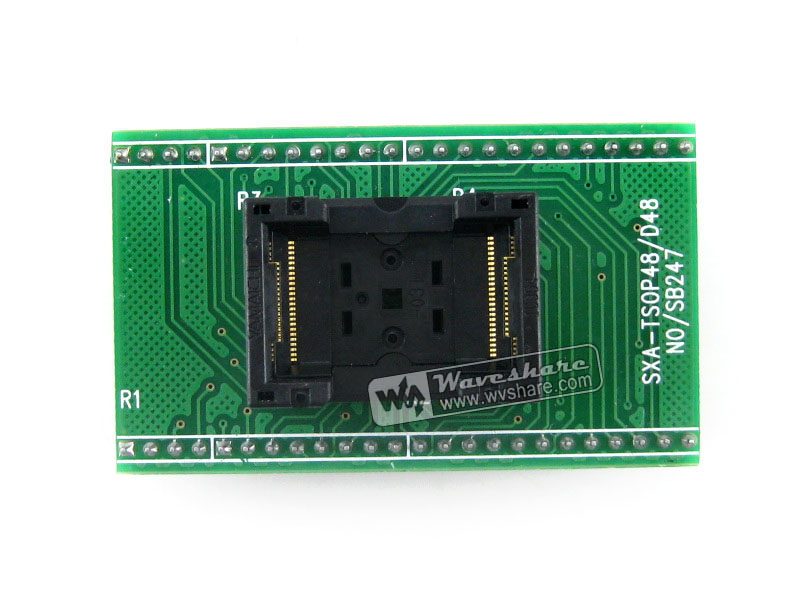

Alternative B (PCB sizes: 40mm * 63mm )

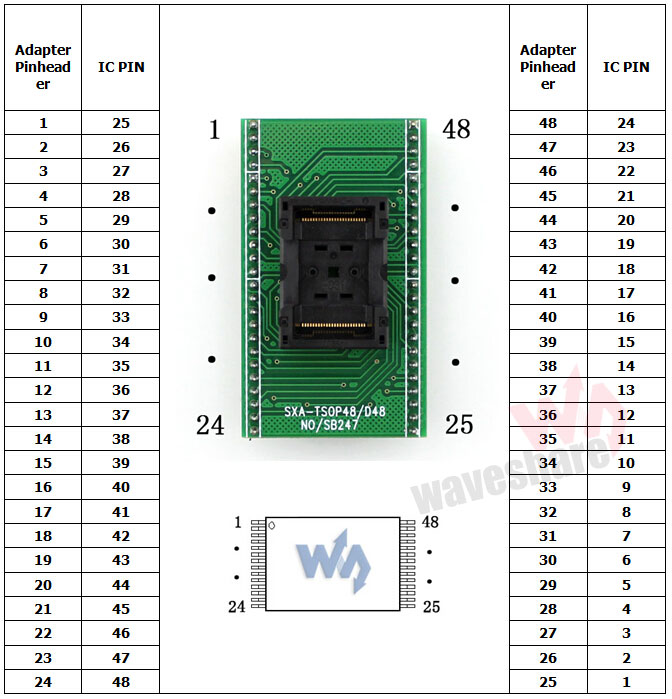

Pinout Mapping

Outline and Dimensions

Unit: mm
Part Number Pitch Pins APPLICABLE IC DIMENSIONS (REF.) OUTSIDE DIMENSIONS (REF.) REMARKS
A B C D E F G H
IC354-0482-031P 0.5 48 20 18.4 19 12 28 20 18 3.2 12X20
CEL05021
