WiiChuck Adapter

Description:

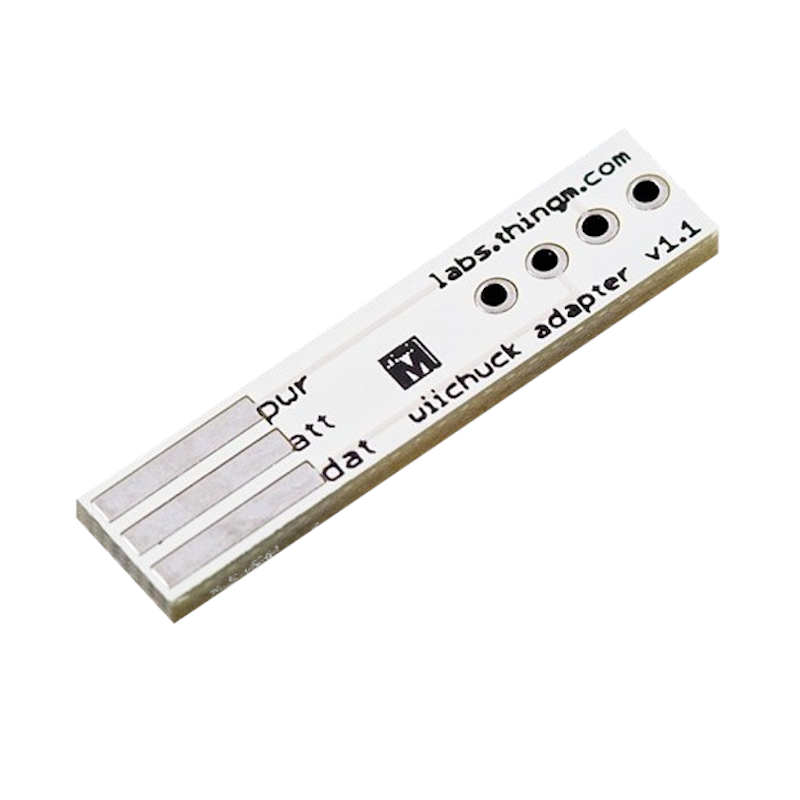

The WiiChuck Adapter is a small PCB that is designed to be inserted into the connector of a Nintendo Wii Nunchuck to provide access to all 4 wires of the remote. The power, ground and two-wire interface of the Nunchuck are all broken out to a 4-pin 0.1" pitch header.

The Wii Nunchuck is loaded with features – a 2-axis joystick, two buttons and a 3 axis ±2g accelerometer – and any device capable of I2C can communicate with it! The WiiChuck allows you to interface with the Nunchuck without making a mess and cutting the wires.

Note:

This product is a collaboration with Tod E. Kurt. A portion of each sales goes back to them for product support and continued development.

Documents:

• WiiChuck Homepage (great tutorials and Arduino library)
