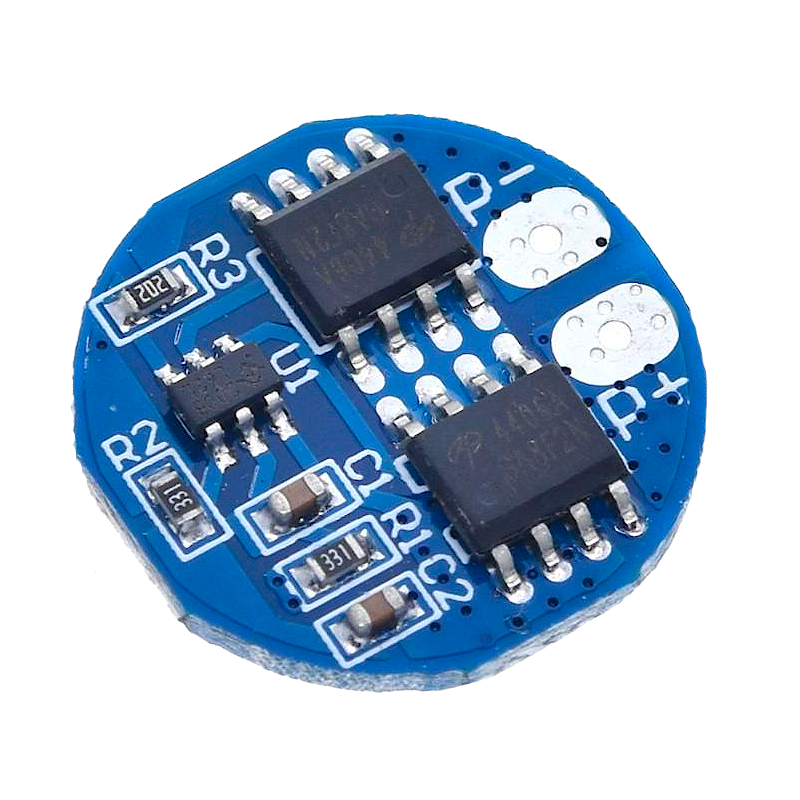

li-ion 18650 BMS Charger PCB Prot. Board, 2S 7.4V 7A (round)

: BAT04031
€3.80
Tax included

Protection circuit (BMS) for 2-cell Li-Ion / Lipo 8.4V batteries. Monitor charge and discharge, protecting the battery from overcharging. Reduced size. Easy installation in 18650 battery packs. It has a load capacity of up to 5A. Its must have a capacity equal to or greater than the power supply by its PACK (between 8.4V to 9V).

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications:

  • Model: 2S 5A BMS;
  • Charge voltage range: 4.25 +/- 0.05V to 4.35V;
  • Size: 17.3 * 17.3 * 17.3mm;
  • Discharge voltage range: 2.5 +/- 0.05V to 3.0V;
  • Maximum working current: 5A;
  • Working temperature: -40 to +50 °C;
  • Maximum instantaneous current: 7A;
  • Storage conditions: -40 + 80 °C;
  • Static electricity: less than 10ua;
  • Service life: more than 50000 hours;
  • Resistance: less than 300m;
  • Short circuit protection: to protect and restore must charge;
  • Charging voltage: 8.4V to 9V.

Welding point:

  • B+ connect the anode (positive) of the battery;
  • B- connect the cathode (negative) of the battery;
  • MB, connect battery 1 and 2 before the junction points;
  • P+ correct load/unload response (load/unload end sharing);
  • P- respond to negative charge/discharge end (load/discharge end sharing).
