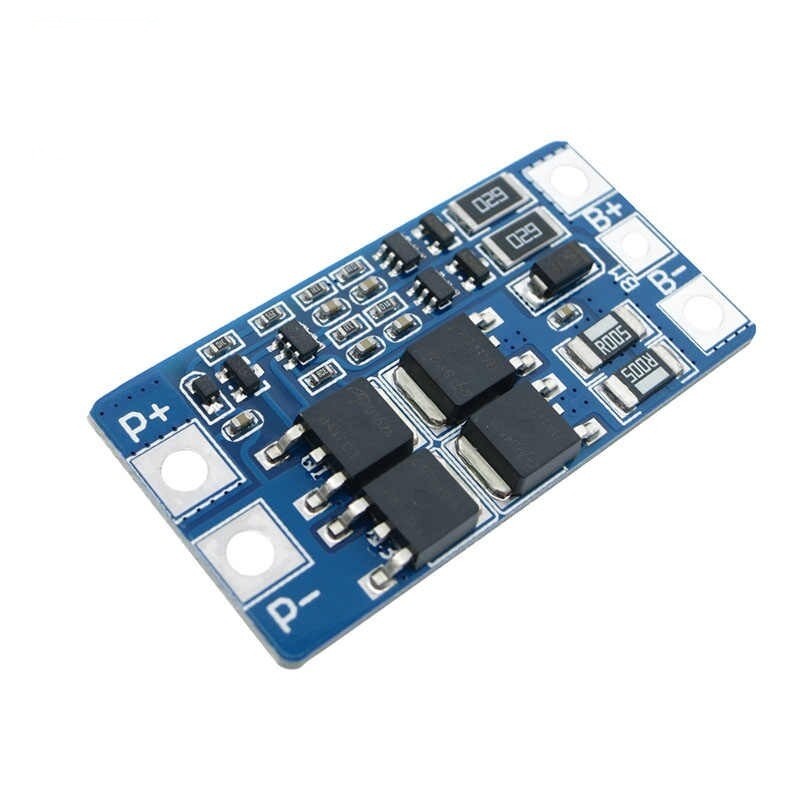

li-ion 18650 BMS Charger PCB Prot. Board, 2S 7.4V 10A

: BAT04020
€5.75
Tax included
  • Charging voltage: 8.4~9Vdc
  • Over-charging protection voltage: 4.25~4.35Vdc +-0.05Vdc
  • Under-discharging protection voltage: 2.5~3.0Vdc +-0.05Vdc
  • Máx discharging current (continuous): 10A para uma temperatura ambiente de -40~50ºC
  • Peak current (instantaneous): 20A
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications:

  • Charging voltage: 8.4~9Vdc
  • Over-charging protection voltage: 4.25~4.35Vdc +-0.05Vdc
  • Under-discharging protection voltage: 2.5~3.0Vdc +-0.05Vdc
  • Máx discharging current (continuous): 10A para uma temperatura ambiente de -40~50ºC
  • Peak current (instantaneous): 20A
  • Leak current: less then 10uA
  • Resistor: 300mOhm
  • Shor-circuit protection (must recharge to reset protection)
  • PCB Size: 46.7x23x3.15mm
BAT04020
