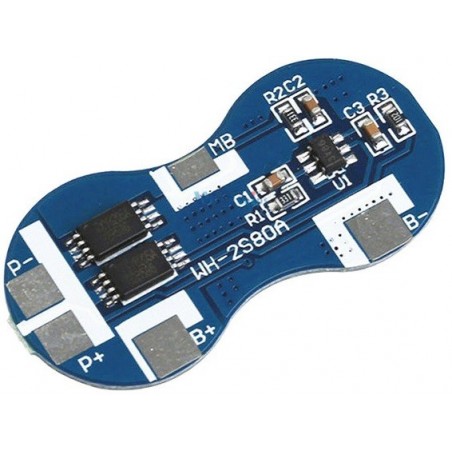

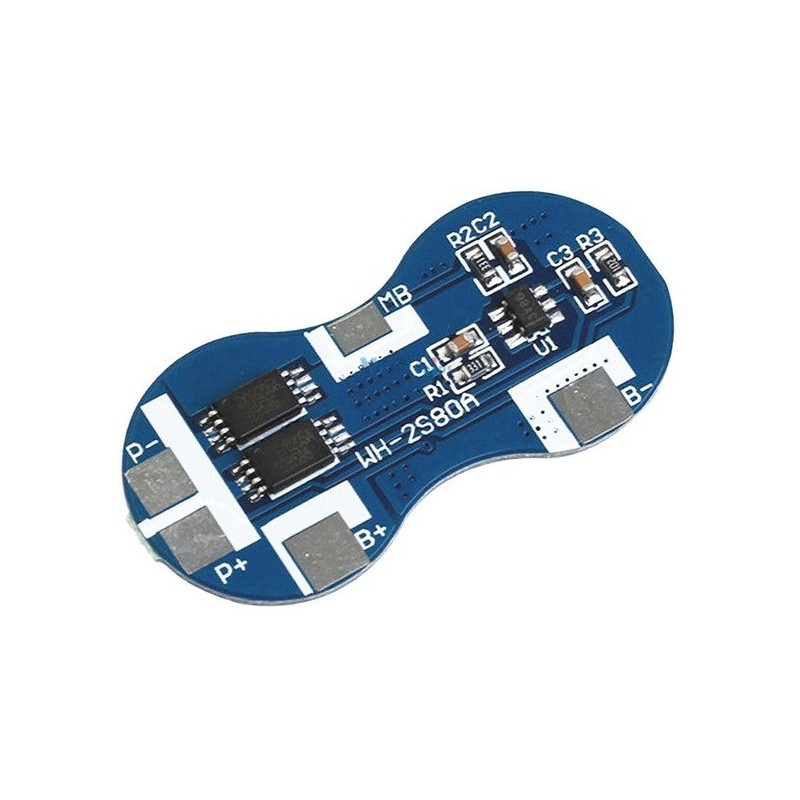

li-ion 18650 BMS Charger PCB Prot. Board, 2S 7.4V 4A

: BAT02037
€4.20
Tax included
1. High-precision voltage detection function for each battery;
2. Overcurrent detection function;
3. Through the MOS tube can control the battery charge and discharge;
4. Wide operating temperature range: -40°C ~ +85°C;
5. Low current consumption
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features:

1. High-precision voltage detection function for each battery;
2. Overcurrent detection function;
3. Through the MOS tube can control the battery charge and discharge;
4. Wide operating temperature range: -40°C ~ +85°C;
5. Low current consumption


Specifications:

1. Charging voltage: DC 9V (MAX:12V)
2. Current:
 - Standby current consumption ≤6uA
 - Maximum sustained discharge current:4A
3. Overcharge protection:
 - Overcharge detection voltage: 4.29V Accuracy ≤±0.025V
 - Overcharge detection delay time: 1s
 - Overcharge recovery voltage: 4.05V Accuracy ≤±0.025V
4. Over-discharge protection:
 - Over-discharge detection voltage: 3V Accuracy ≤±0.1V
 - Over-discharge detection delay time: 128ms
 - Over discharge recovery voltage: 3.2V Accuracy ≤±0.1V
5. Over-current protection:
 - Overcurrent detection voltage: 200mV
 - Overcurrent detection current: 9.8A
 - Overcurrent delay time: 12ms
 - Recovery Status: Auto Recovery
6. Short-circuit protection:
 - Detection status:external short circuit
 - Detection delay time: ≤ 50us
 - Recovery Status: Auto Recovery
7. Internal resistance: protection circuit: (MOSFET) ≤ 21mΩ
8. Temperature:
 - Operating temperature range:-40 ° ~ +80 °
 - Storage temperature range:-40 ° ~ +125 °
 - Product size: about 3.50*1.70cm/1.38"*0.67"
