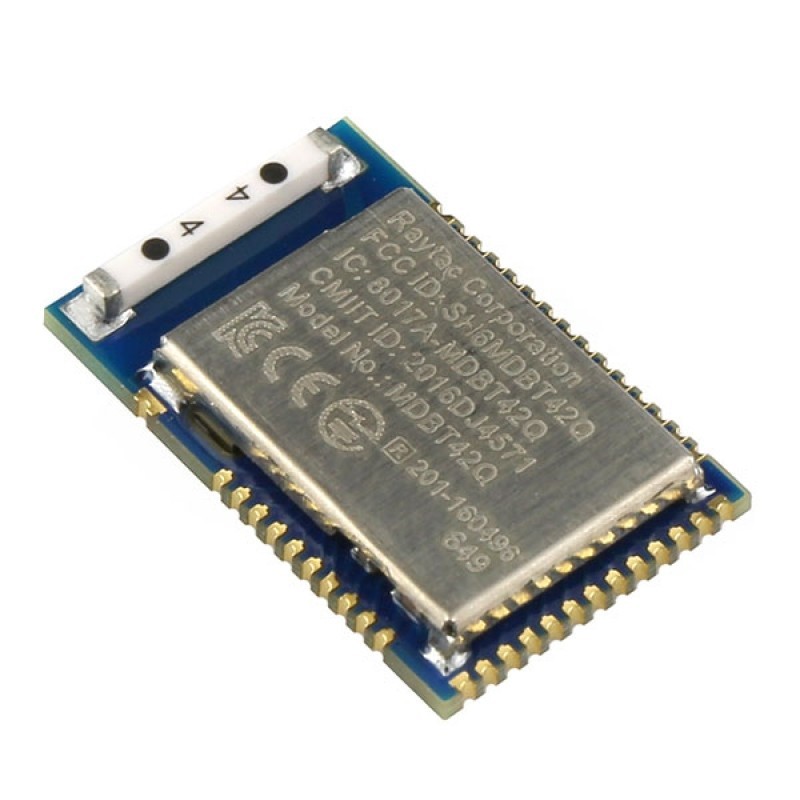

MDBT42Q BLE Bluetooth 4.2 Module - nRF52832

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

MDBT42Q is a BT4.0, BT4.1 and BT 4.2 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF52832 SoC solution which incorporates: GPIO, SPI, UART, I2C, I2S, PWM and ADC interfaces for connecting peripherals and sensors. It's a BLE Module with Chip Antenna - 512k flash memory & 64KB RAM.

Part number: MDBT42Q-512K

Highlights:
  • Long Working Distance (Over 60M in open space)
  • Declaration ID already included all Nordic applied profiles.
  • FCC (USA) & Telec (Japan)certificate & CE(EU)granted.

Features:
  • Dual Transmission Mode of BLE & RF 2.4G upon customer preference.
  • Compact size with (L)16x(W)10x(H)2.2mm
  • Low power requirements, ultra-low peak, average and idle mode power consumption.
  • Compatible with a large installed based of mobiles phones, tablets and computers.
  • Fully coverage of BLE software stack including:
      • Proximity Profile; Heart Rate Profile; Health Thermometer Profile;
      • Blood Pressure Profile; Running Speed & Cadence Profile;
      • HID Over GATT Profile; Alert Notification Profile; Glucose Profile;
      • Cycling Speed & Cadence Profile
      • Fully support customers to suit the needs of any application!
  • BLE & RF transmission switching may help products to fit all operation system and most hardware.


Applications:

• Home automation
• Sensor networks
• Building automatio
• Health / fitness sensor and monitor device
• Medical devices
• Key-fobs and wrist watches
• Remote control
• Gaming controller
• Beacons
• A4WP wireless chargers and devices
• Remote control toys
• Computer peripherals and I/O devices
• Mouse
• Keyboard
• Multi-touch trackpad

MDBT42Q & MDBT42Q-P Spec
