8 Channel Bluetooth Relay Module

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product Description

8 Channel Bluetooth Relay Module is great for controlling your devices over Bluetooth link without any RF design knowledge. This module is designed to plug in to your design seamlessly. Individual relay can be controlled by simple commands. Numato's 8 Channel Bluetooth Relay Module provides exceptional value for money.

 This board has eight on board 12V DC relays that can switch up to 10A load. The relays are controlled by a Microchip PIC Microcontroller (PIC18F14K50) over Bluetooth link and comes with built in firmware that supports simple commands to control relays and read relay status. This board can easily be controlled by writing simple serial port application in VC++, VB, VBA (Word, Excell etc), Perl, Python etc. A USB Bluetooth Dongle or Bluetooth integrated PC/Laptop would be sufficient to communicate with this device. A USB connector is available on board for firmware upgrade.

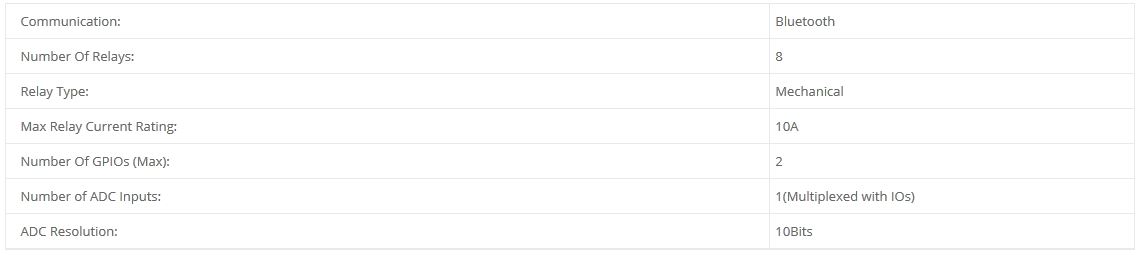

Specifications

Downloads

Sample Code

• C - VCExpress2008 - Command Line - Windows
• C - VCExpress2010 - Command Line - Windows
• Visual Basic - VBExpress2008 - GUI - Windows
• Visual Basic - VBExpress2010 - GUI - Windows
• Visual Basic - Visual Basic 6 - GUI - Windows
• C - Visual C++ 6 - Command Line - Windows
• Python - Python - Command Line - Windows
• Java - NetBeans - Command Line - Any
• C# - Visual Studio 2012 - GUI - Windows
• AutoHotkey - AutoHotkey - GUI - Windows
