Methane CNG Gas Sensor - MQ-4

Fermion: MEMS Methane CH4 Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions, low power consumption, minimal heat generation, short preheating time, and swift response recovery.
If you want to know more about this product, please check his Wiki Page.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.

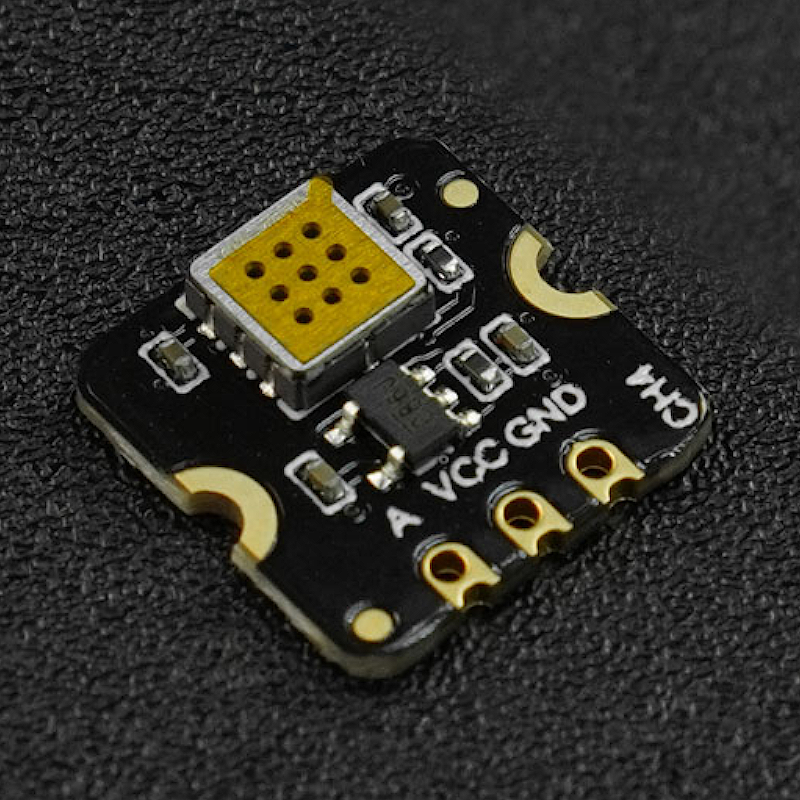

Fermion: MEMS Methane CH4 Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (<20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure methane gas concentration and is suitable for combustible gas leakage monitoring devices, gas leak detectors, fire/safety detection systems and other applications.
The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.
Figure: Wiring Diagram of Fermion: MEMS CH4 Gas Sensor and Arduino UNO
Precautions for use
Kindly remove the protective film before usage.
To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
Prevent contamination from alkalis, alkali metal salts, and halogens.
Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
Avoid contact with water, condensation, and freezing.
Minimize excessive vibration, impact, and dropping.
Please refrain from employing this module in systems that involve personal safety concerns.
For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
Compact size, measuring only 13*13*2.5mm
Low power consumption, operating current <20mA
High sensitivity and rapid response recovery
Advanced MEMS technology
Environmental monitoring: detect the presence of methane emissions or leaks from natural or anthropogenic sources.
Indoor air quality: measure the concentration of methane in the indoor air and control the ventilation or alarm systems accordingly.
Industrial safety: detect any leaks or spills of methane and warn the workers or the managers to take preventive measures.
Fire detection: identify any abnormal increase of methane in the air and trigger the fire alarm or sprinkler system.
Health applications: measure the amount of methane in the breath, methane can be produced by some bacteria in the human gut or some metabolic disorders
Gas detected: CH4, C3H8, etc
Detection range: 1-10000ppm (C3H8)
Operating voltage: 3.3-5V
Operating current: <20mA
Output signal: Analog voltage
Sensitivity: R0(in air)/Rs(in 5000ppm CH4) ≥ 2
Operating temperature: -10-50℃
Operating humidity: 15-90%RH (non-condensing)
Lifespan: ≥5 years (in air)
Dimension:13×13 x 2.5mm/0.0.51×0.51x0.1"
Fermion: MEMS CH4 Sensor (breakout) × 1
2.54mm pitch header pin × 1
