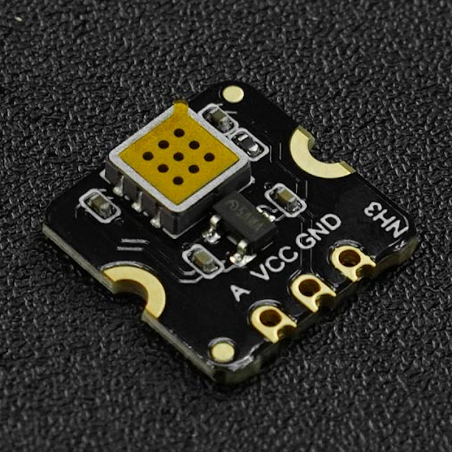

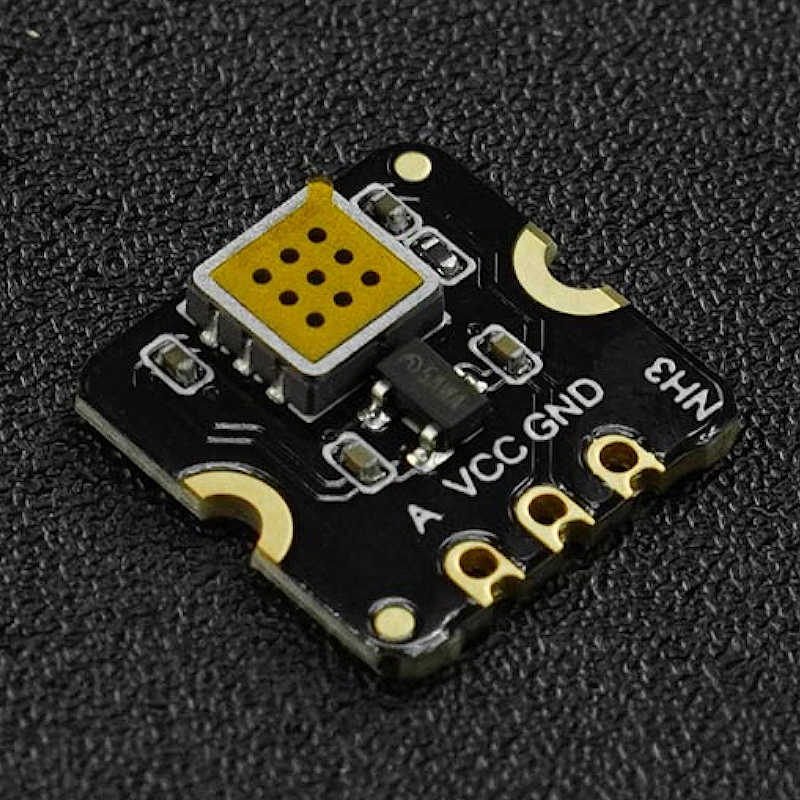

Fermion: MEMS Ammonia NH3 Gas Detection Sensor (Breakout, 1-300ppm) - DFRobot SEN0567

Fermion: MEMS Ammonia NH3 Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure ammonia concentration, which is suitable for ammonia leakage in cold storage, aquaculture risk control, toilet odor monitoring and other application scenarios.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Please note: This sensor is capable of qualitative measurements only. For quantitative measurements, kindly consider purchasing the Gravity: NH3 Sensor (Calibrated).

Figure: Wiring Diagram of Fermion: MEMS NH3 Sensor and Arduino UNO

Precautions for use

1. Kindly remove the protective film before usage.

2. To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).

3. Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).

4. Prevent contamination from alkalis, alkali metal salts, and halogens.

5. Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).

6. Avoid contact with water, condensation, and freezing.

7. Minimize excessive vibration, impact, and dropping.

8. Please refrain from employing this module in systems that involve personal safety concerns.

9. For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

1. Compact size, measuring only 13*13*2.5mm

2. Low power consumption, operating current ＜20mA

3. High sensitivity and rapid response recovery

4. Advanced MEMS technology

1. Ammonia leakage in cold storage

2. Aquaculture risk control

3. Toilet odor monitoring

1. Gas detected: Ammonia (NH3)

2. Detection range: 1-300ppm

3. Operating voltage: 3.3-5V

4. Operating current: ＜20mA

5. Output signal: Analog voltage

6. Sensitivity: R0(in air)/Rs(in 50ppm NH3) ≥ 3

7. Operating temperature: -10-50℃

8. Operating humidity: 15-90%RH (non-condensing)

9. Lifespan: ≥5 years (in air)

10. Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"
