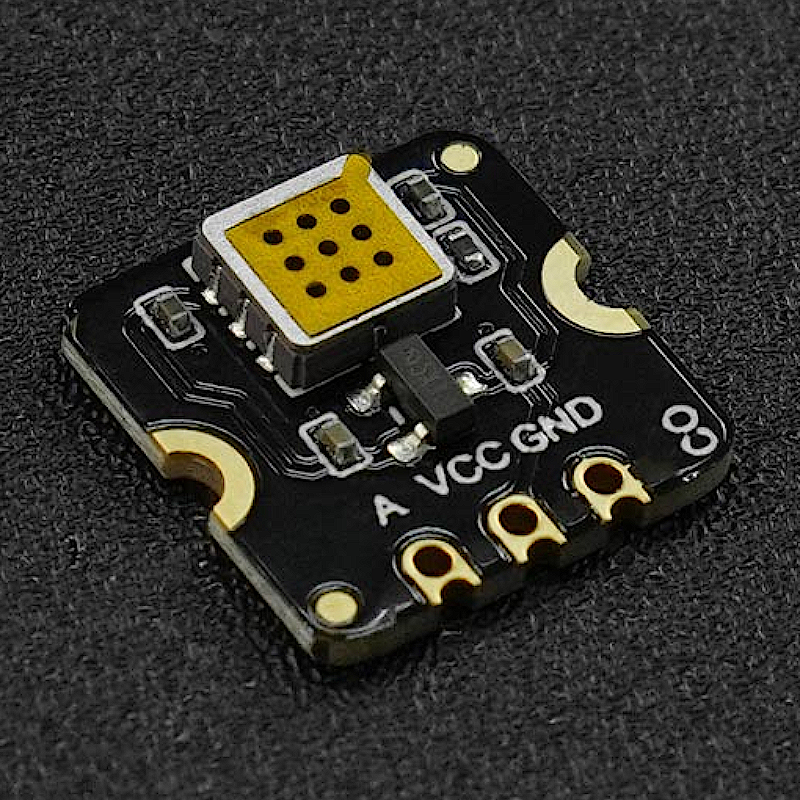

Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor (Breakout, 5-5000ppm) - DFRobot SEN0564

Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor employs state-of-the-art micro electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20 mA), minimal heat generation, a short preheating time, and swift response recovery. The sensor can measure carbon monoxide gas concentrations qualitatively and is suitable for carbon monoxide leak alarms and portable carbon monoxide detectors.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical CO Sensor (0-1000 ppm, I2C & UART).

Figure: Wiring Diagram of Fermion: MEMS CO sensor and Arduino UNO

Precautions for use

1. Kindly remove the protective film before usage.

2. To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).

3. Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).

4. Prevent contamination from alkalis, alkali metal salts, and halogens.

5. Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).

6. Avoid contact with water, condensation, and freezing.

7. Minimize excessive vibration, impact, and dropping.

8. Please refrain from employing this module in systems that involve personal safety concerns.

9. For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

1. Compact size, measuring only 13*13*2.5mm

2. Low power consumption

3. High sensitivity and rapid response recovery

4. Advanced MEMS technology

1. Petrochemical carbon monoxide detection

2. Metallurgy carbon monoxide detection

3. Mining carbon monoxide detection

4. Environmental protection

1. Gas detected: CO

2. Detection range: 5-5000ppm

3. Operating voltage: 3.3-5V

4. Operating current: ＜20 mA

5. Output signal: Analog voltage

6. Sensitivity: R0(in air)/Rs(in 150ppm CO) ≥ 3

7. Operating temperature: -10-50℃

8. Operating humidity: 15-90%RH (non-condensing)

9. Lifespan: ≥5 years (in air)

10. Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"

1. Product wiki

2. Schematics & Dimension

3. Characteristic Parameter

1. Fermion: MEMS Carbon Monoxide CO Sensor (breakout) × 1

2. 2.54mm pitch header pin × 1
