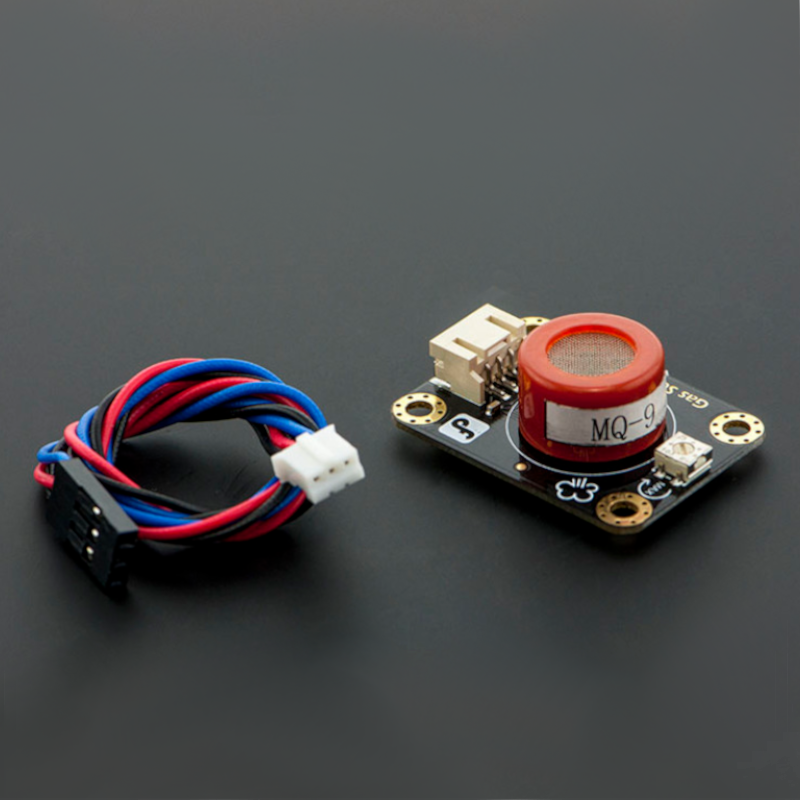

Analog CO/Combustible gas sensor(MQ9)

: SEN08008
€12.75
Tax included

MQ-9 gas sensor has high sensitity to Carbon Monoxide, Methane and LPG. It is low cost and suitable for different applications. CO: 10-1000ppm | Others: 100-10000ppm

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

This is an Arduino CO/Combustible Gas sensor. It uses MQ-9 to dectect Carbon Monoxide. The sensor can be used to detect different gases containing CO and combustible gases, it is low cost and suitable for a variety of applications.

The core sensing material of MQ-9 gas sensor is SnO2, which has a lower conductivity in clean air. It makes detection by cycling high and low temperature, and detects CO when low temperature (heated by 1.5V). The sensor’s conductivity is higher along with the gas concentration rising. When temperature rises (heated by 5.0V), it detects Methane, Propane, combustible gas,etc  and cleans the other gases adsorbed under low temperature.
The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.

To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play.  The Arduino IO expansion shield is the best match for this senor connecting to your Arduino microcontrollers.



Applications

  1. Domestic gas leakage detector

  2. Industrial gas detector

  3. Portable gas detector



Specification

  1. Power supply needs: 5V

  2. Interface type: Analog

  3. Sensor Type: Semiconductor

  4. Concentration:

  5. 10-1000ppm CO

  6. 100-10000ppm combustible gas

  7. Good sensitivity to CO/Combustible gas

  8. High sensitivity to Methane, Propane and CO

  9. Long life and low cost

  10. Size: 36.4x26.6mm(1.43"x1.05")



Documents



Shipping List

  1. Arduino CO Gas Sensor (MQ9) x1

  2. Gravity Analog Cable x1

SEN08008
