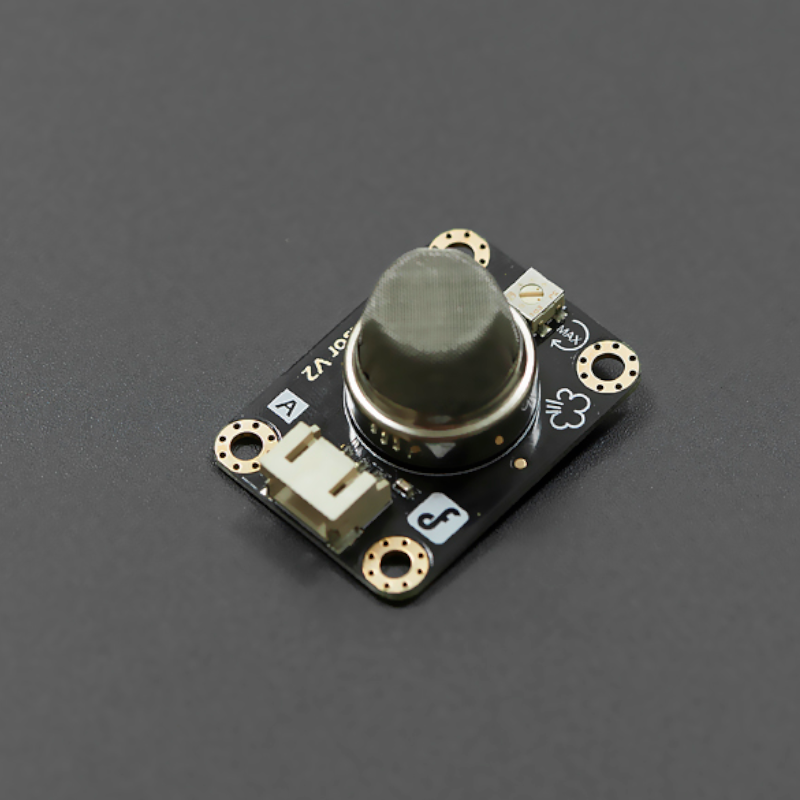

Gravity: Analog Propane Gas Sensor (MQ6) For Arduino
The MQ6 (LPG Gas Sensor) is a simple-to-use liquefied petroleum gas (LPG) sensor. It can be used in gas leakage detecting equipment in consumer and industry applications,this sensor is suitable for detecting LPG, iso-butane, propane, LNG. Avoid the noise of alcohol, cooking fumes and cigarette smoke. The sensitivity can be adjusted by the potentiometer.
If you want to know more about this product, please check the Wiki Page and the Selection Guide.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Introduction
This is an Arduino Propane Gas Sensor. It uses MQ6 probe to detect iso-butane, propane and liquefied petroleum gas (LPG). It is less sensitive with alcohol, cooking fumes and cigarette smoke.
It can be used in gas leakage detecting equipment in consumer and industry applications,
The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.
Specification
-
Working Voltage: 5V
-
Interface type: Analog
-
Pin Definition: 1-Output 2-GND 3-VCC
-
High sensitivity to LPG, iso-butane, propane
-
Small sensitivity to alcohol, smoke
-
Fast response
-
Stable and long life
-
Simple drive circuit
-
Size: 40x20mm(1.57"x0.79")
Documents
Shipping List
-
Arduino Propane Gas Sensor (MQ6) x1
-
Gravity Analog Cablex1
