Gravity: Analog LPG Gas Sensor (MQ5) For Arduino
The MQ5 is used in gas leakage detecting equipment in consumer and industry applications,this sensor is suitable for detecting LPG, natural gas, coal gas. Avoid the noise of alcohol, cooking fumes and cigarette smoke. The sensitivity can be adjusted by the potentiometer.
If you want to know more about this product, please check the Wiki Page and the Selection Guide.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Introduction

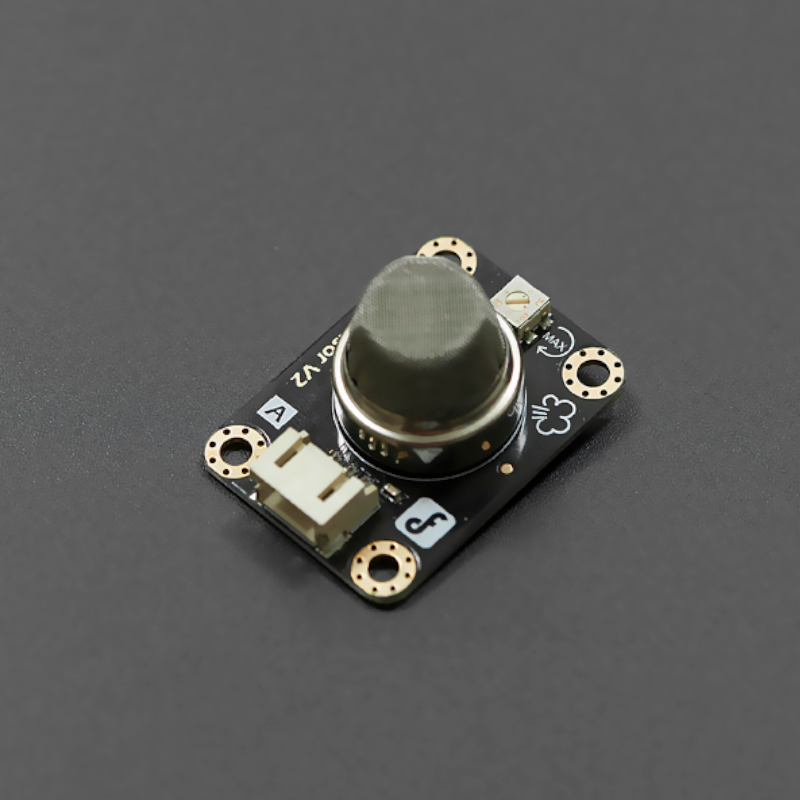

This is an Arduino LPG gas sensor. It has MQ5 probe which is very sensitive with LPG, natural gas , town gas. It is less sensitive with alcohol, cooking fumes and cigarette smoke.
The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.
To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino microcontrollers.
Specification
-
Power supply needs: 5V
-
Interface type: Analog
-
Pin Definition: 1-Output 2-GND 3-VCC
-
High sensitivity to LPG, natural gas, town gas
-
Small sensitivity to alcohol, smoke
-
Fast response
-
Stable and long life
-
Simple drive circuit
-
Size: 40x20mm(1.57"x0.79")
Documents
Shipping List
-
Arduino LPG Gas sensor (MQ5) x1
-
Gravity Analog Cable x1
