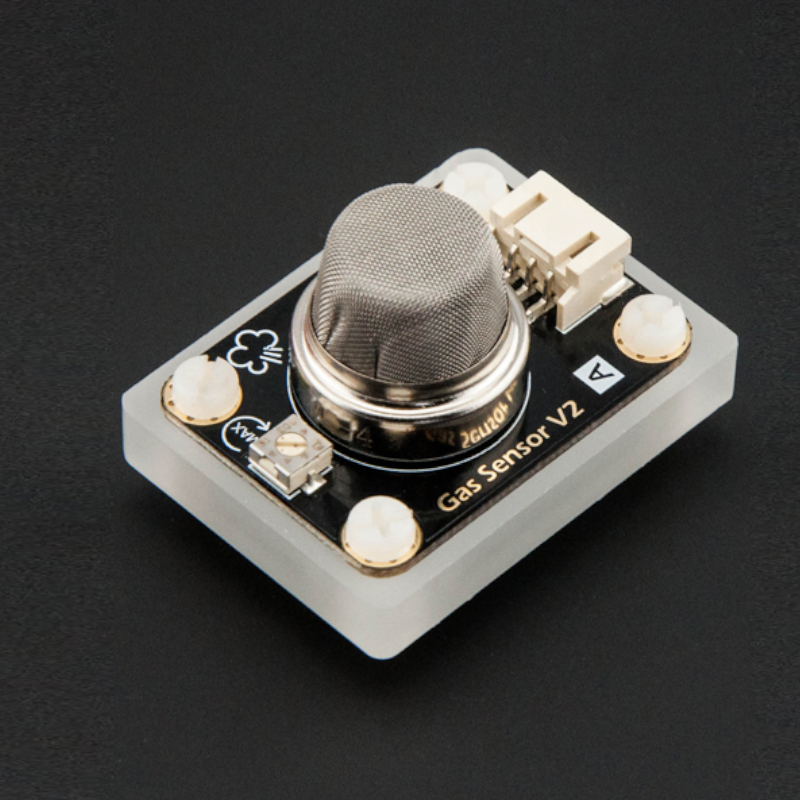

Gravity: Analog CH4 Gas Sensor (MQ4) For Arduino
The MQ4 is used in gas leakage detecting equipment in consumer and industry markets,this sensor is suitable for detecting CH4,Natural gas, LNG, avoid exposure to alcohol, cooking fumes, and cigarette smoke. The sensitivity can be adjusted by the potentiometer.
If you want to know more about this product, please check the Wiki Page and the Selection Guide.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Introduction
This is an Arduino CH4 gas sensor. It uses MQ4 probe which is able to detect natural gas, CH4. It is less sensitivity in detecting alcohol, cooking fumes, and cigarette smoke.
The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.
To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino microcontrollers.
Specification
-
Power supply: 5V
-
Interface type: Analog
-
Pin Definition: 1-Output 2-GND 3-VCC
-
High sensitivity to CH4,Natural gas
-
Small sensitivity to alcohol, smoke
-
Fast response
-
Stable and long life
-
Simple drive circuit
-
Size: 40x20mm(1.57"x0.79")
Documents
Shipping List
-
Arduino CH4 Gas sensor (MQ4) x1
