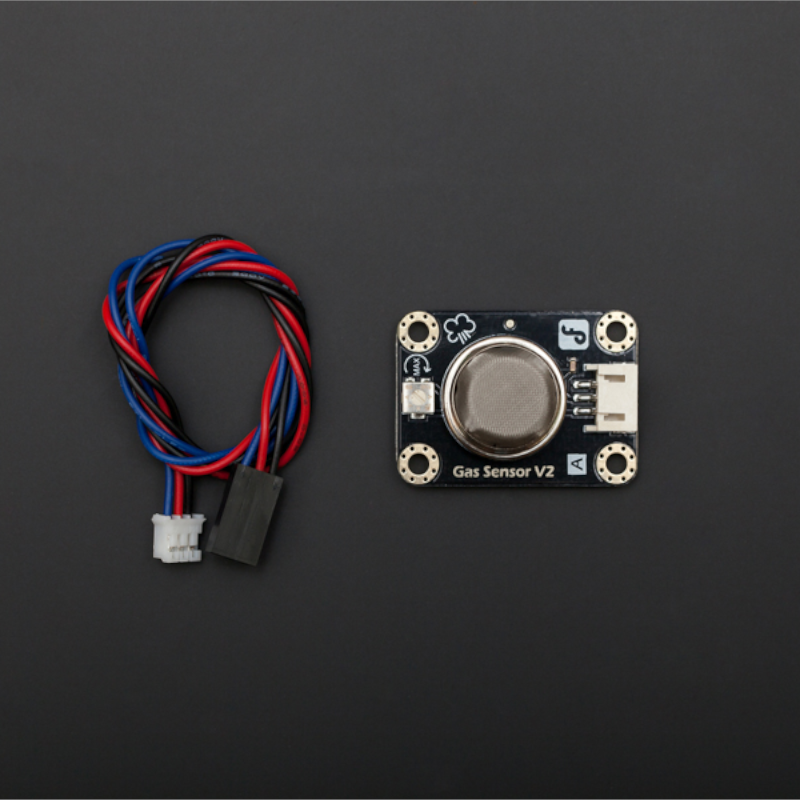

Gravity: Analog Gas Sensor (MQ2) For Arduino

: SEN08061
€6.50
Tax included

This is a generic Arduino gas sensor. It has MQ2 probe which is able to detect LPG, i-butane, propane, methane ,alcohol, Hydrogen, smoke.

If you want to know more about this product, please check the Wiki Page and the Selection Guide.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

This is a generic Arduino gas sensor. It has MQ2 probe which is able to detect LPG, i-butane, propane, methane ,alcohol, Hydrogen, smoke.  It can be used in gas leakage detecting device in consumer and industry markets. It has a high sensitivity and fast response time.

The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.

To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino. As this sensor can work at 3.3V which makes it compatible with Raspberry Piintel edison, joule and curie.



Improvement List

  1. Standard assembling structure (Times-of-5mm Center distance between two 3mm mounting holes)

  2. Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)

  3. Icons to simplely illustrate sensor function

  4. High quality connector

  5. Immersion gold surface



Specification

  1. Power supply needs: 5V

  2. Interface type: Analog

  3. Wide detecting scope

  4. Fast response and High sensitivity

  5. Simple drive circuit

  6. Stable and long life

  7. Size:36.4x26.6mm (1.4x1'')



Projects

Project 1. DFRobot AutoEco System takes care of your garden.
By following this project it will help to grow a vegetable garden, and automate some other processes in our house along the way.
List of basic hardware to setup an AutoEco Sys:

  1. Romeo

  2. X-Board

  3. Light Sensor

  4. Gas Sensor

  5. Motion Sensor

  6. Tempreture&Humidity Sensor

  7. Waterproof temperature sensor



Documents



Shipping List

  1. Arduino Gas Sensor (MQ2) x1

  2. Gravity Analog Cable x1

SEN08061
