This is a sensor that detects nitrogen dioxide concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of nitrogen dioxide in the environment.
If you want to know more about this product, please check the Wiki Page and the Selection Guide.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
This is a sensor that detects nitrogen dioxide concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of Nitrogen Dioxide in the environment. Can be widely used in the detection of nitrogen dioxide in industrial, underground, and environmental protection fields.
The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32, Raspberry PI. The easy-to-use Gravity interface, coupled with our sample code, can quickly build a nitrogen dioxide concentration detector.
DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF, which are used in exactly the same way and data format, so you can combine them according to your needs.
Strong anti-interference ability
High stability
High sensitivity
Industrial nitrogen dioxide detection
Underground nitrogen dioxide detection
Environmental protection device
Detection Gas: Nitrogen Dioxide(NO2)
Detection range: 0~20ppm
Working Voltage: 3.3~5.5V DC
Working Current: <5mA
Output Signal: I2C, UART (0~3V), analog voltage
Working Temperature: -20~50℃
Working Humidity: 15~90%RH (non-condensing)
Storage Temperature: -20~50℃
Storage Humidity: 15~90%RH (non-condensing)
Lifespan: >2 years (in the air)
Adapter Plate Size: 37*32mm
Compatibility: Arduino, ESP32, Raspberry pi

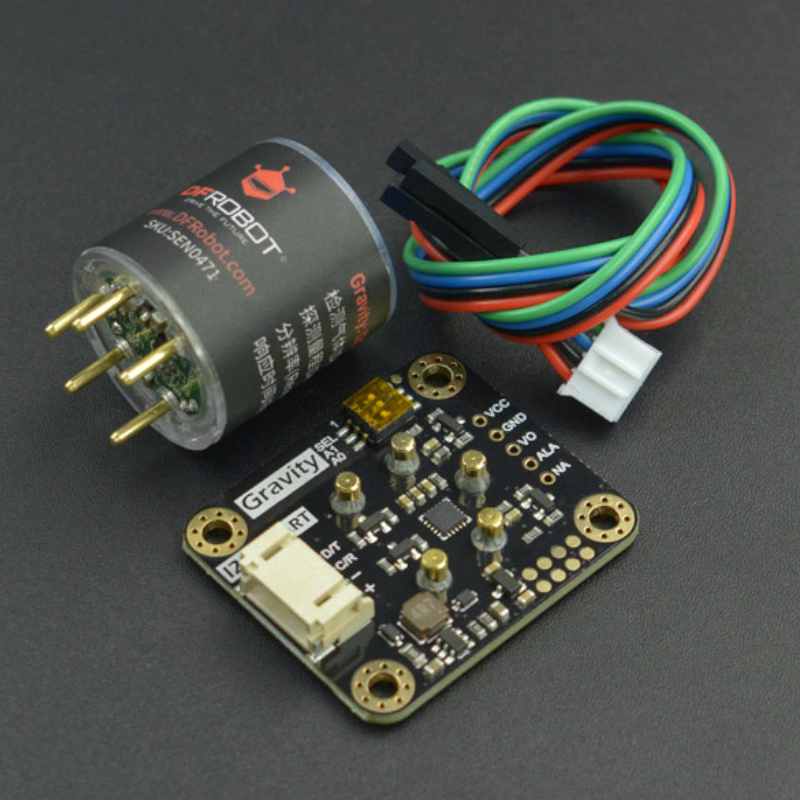

Gravity: NO2 Signal Conversion Board x1
NO2 sensor probe x1
Gravity - 4pin Cable x1
