Sensor de caudal de água G3/4

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

We have a comprehensive line of water flow sensors in different diameters. Check them out to find the one that meets your need most.

FEATURES

•   • Compact, Easy to Install
•   • High Sealing Performance
•   • High Quality Hall Effect Sensor
•   • RoHS Compliant

SPECIFICATIONS

•   • Mini. Wokring Voltage: DC 4.5V
•   • Max. Working Current: 15mA (DC 5V)
•   • Working Voltage: DC 5V~24V
•   • Flow Rate Range: 0~60L/min
•   • Load Capacity: ≤10mA (DC 5V)
•   • Operating Temperature: ≤80℃
•   • Liquid Temperature: ≤120℃
•   • Operating Humidity: 35%～90%RH
•   • Water Pressure: ≤2.0MPa
•   • Storage Temperature: -25～+ 80℃
•   • Storage Humidity: 25%～95%RH

DOCUMENTS

•   • Wiki Page

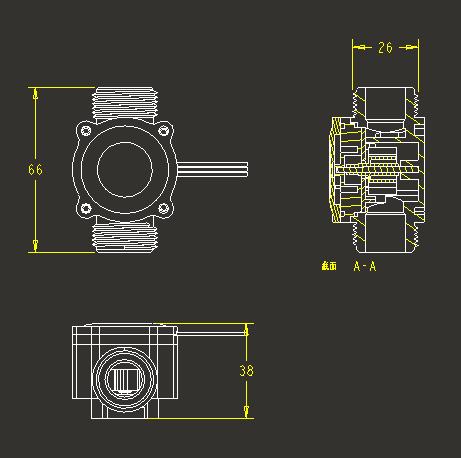

•   • Mechanic Dimensions
•   • British Standard Pipe (BSP)
•   • Water Flow rate display on LCD
•   • How Magnetic Reed Liquid Level Sensors Work
•   • Reading Water Flow rate with Water Flow Sensor
