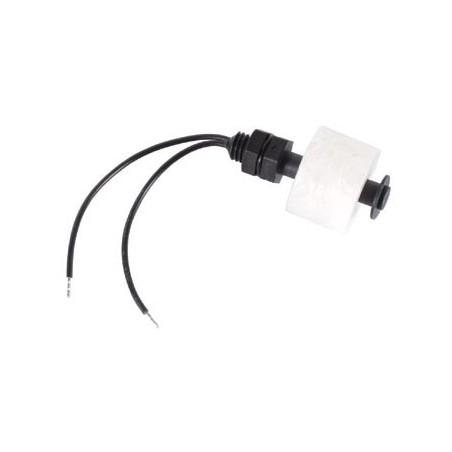

Level Sensor NO - Normally Close

: SEN08041
€4.95
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • type: normally closed
  • actuation:
    • on-state: from 9.0 to 13.7mm
    • off-state: from 4.0 to 12.0mm
  • switching current: 1.0A DC max.
  • switching power: 10VA max.
  • contact resistance: 150m ohm max.
  • contact material: rhodium
  • operating/release time: 0.6ms/0.1ms max.
  • max. voltage: 100VDC
  • breakdown voltage: 250VDC
  • operating temperature: 0 to +70°C
  • materials: polyamide, polypropylene foam and rubber
  • length of lead wire: 70mm
SEN08041
