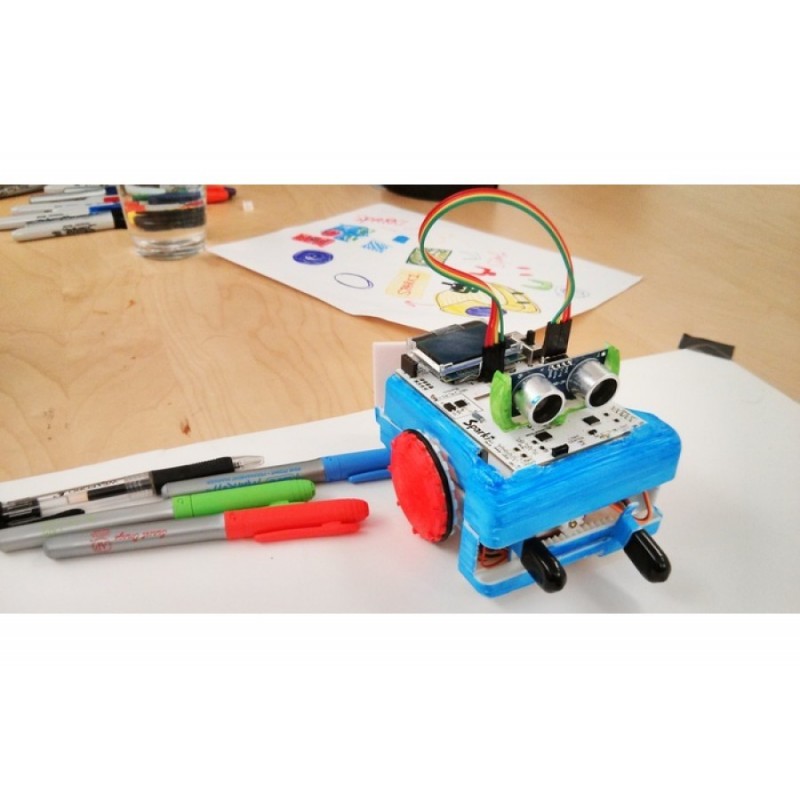

ArcBotics - Sparki The Easy Robot for Everyone

If you have any questions on this product please feel free to contact us. *Disclaimer: The images are merely illustrative.

INTRODUCTION

APPLICATIONS

• Be a toy or present for your children;
• An easier way to learn Arduino;
• Be a good tool of education for your children ;
• Be a good way of education on your class
• An amazing secondary development platform for geekers,hackers

SPECIFICATION

• Completely Arduino-compatible, the controller use  the Arduino Leonardo
• Low cost, but much to play;
• No assembly required;
• A lot example codes for test;(Some advanced concepts may not offered,but you may find it in sparki community)
• Wireless control through bluetooth;
• And So many sensors:
• 1x Ultrasonic distance sensor (get distance from Sparki to walls/objects)
• 1x 3-Axis Accelerometer (pick-up detection, fall detection, hill climbing)
• 1x 3-Axis Magnetometer (sense the magnetic field around Sparki, coordinate with accelerometer to detect compass heading)
• 3x Light-sensing phototransistors (light following, darkness seeking)
• 5x Line-following and edge detection sensors (mazes, line follow, sumo)
• 1x 128×64 Graphic LCD
• 1x RGB LED (RGB = generate any color!)
• 1x Buzzer (beeping, booping, and musical tones!)
• 1x IR Transmitter (like your TV remote control)
• 1x IR Receiver (like your TV)
• 1x IR Remote control (lots of buttons to control Sparki with)
• 1x TTL Serial port for expansion (talk to an Arduino/Raspberry Pi)
• 1x Port for Bluetooth Serial Module (not in all rewards)
• Powered by 4xAA batteries (rechargeable or alkaline)
• 2x Geared stepper motors (precise, measured movement down to millimeters/ sub-degrees)
• Marker holder for drawing

DOCUMENTS

• Github of Sparki
• Getting Started with Sparki
• Sparki Forum
• Sparki Wall-avoidance Tutorails

SHIPPING LIST

• sparki (assembled) x1
• bluetooth module x1
• IR Remote x1
• Usb Cable x1
