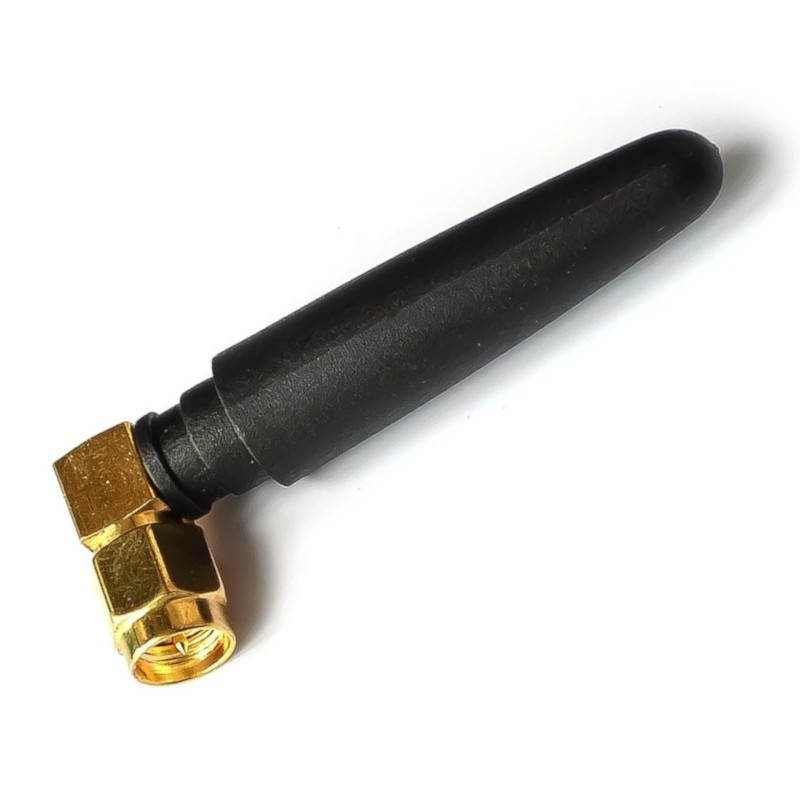

Antenna GSM Quad Band 850 / 900 / 1800 / 1900 MHz 2dbi SMA Conector
Frequency:
824~894/1710~1990MHZ,
880~960/1710~1990MHZ,
1920~2170MHZ
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
1)GSM L-type antenna,GPS Active Antenna,GPS+GSM Antenna,WIFI Antenna
2)GSM/CDMA Car Terminal Rubber Antenna
3) Frequency:824~894/1710~1990MHZ,
880~960/1710~1990MHZ,
1920~2170MHZ
4)Certification:ROSH, CE, ISO9001:2000
Post Environmental Tolerance (Refer to the form 1~2 )
Condition:Temperature range 25±3°C
Relative Humidity range 55~75%RH
Operating Temperature range -40°C~+85°C
Storage Temperature range -40°C~+100°C
5.1 Moisture Proof
The device should satisfy the electrical characteristics specified in form 1~2 after exposed to the temperature 40±2°Cand the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time under normal condition.
5.2 Vibration Resist
The device should satisfy the electrical characteristics specified in form 1~2 after applied to the vibration of 10 to 55Hz with amplitude of 1.5mm for 2 hours each in X , Y and Z directions.
5.3 Drop Shock
The device should satisfy the electrical characteristics specified in form 1~2 after dropping onto the hard wooden board from the height of 30cm for 3 times each facet of the 3 dimensions of the device.
5.4 High Temperature Endurance
The device should satisfy the electrical characteristics specified in form 1~2 after exposed to temperature 80±5°Cfor 24±2 hours and 1~2 hours recovery time under normal temperature.
5.5 Low Temperature Endurance
The device should also satisfy the electrical characteristics specified in form 1~2 after exposed to the temperature -40°C±5°Cfor 24±2 hours and to 2 hours recovery time under normal temperature.
5.6 Temperature Cycle Test
The device should also satisfy the electrical characteristics specified in form 1~2 after exposed to the low temperature -25°C and high temperature +85°C for 30±2 min each by 5 cycles and 1 to 2 hours recovery time under normal temperature.
