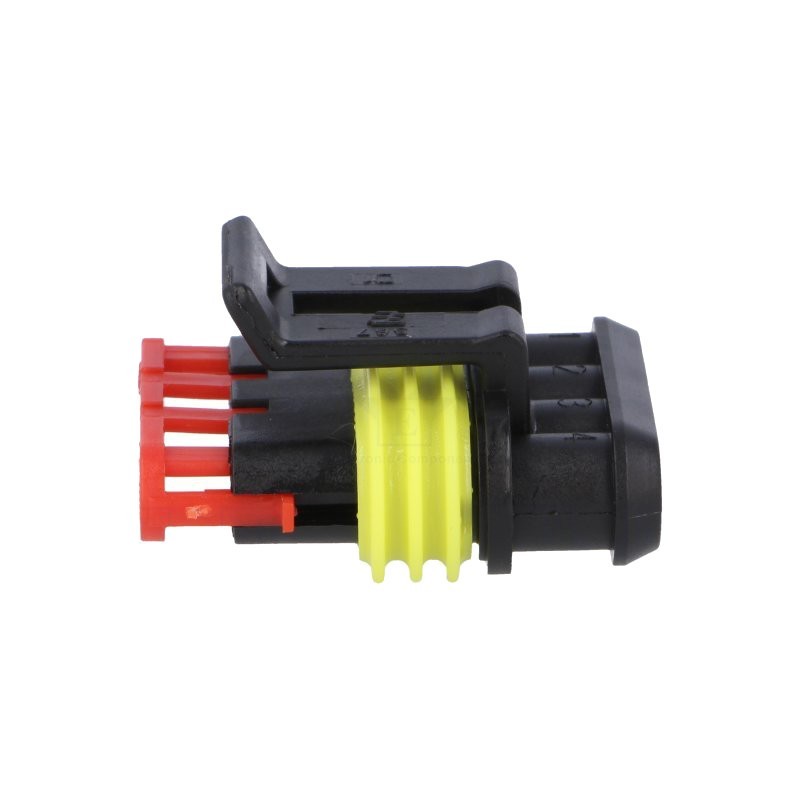

Connector: wire-wire, Superseal 1.5, plug, female, PIN:4, IP67

: CON03044
€0.90
Tax included

Waterproof, IP67 female four-pin connector.

Accessories not included.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Specification:

Manufacturer TE Connectivity
Connector type wire-wire
Connector series Superseal 1.5
Connector plug
Connector type female
Number of pins 4
Sealing IP67
Operating temperature -40...125°C
Locking system latch
Conform to the norm DIN 40050, IEC 529
Rated voltage 24V DC
Width 27.3mm
Connector variant w/o terminals
Material polyamide





To make a wire-to-wire connection beyond this connector you need the acessories as shown below.

1x Connector female 4 pins (Included)

1x Connector male 4 pins (Not Included)

4x Contact male (Not Included)

4x Contact female (Not Included)

8x Seal for wire (Not Included)



CON03044

Download

super-seal-series

Download (549.67k)

Dimensions

Download (218.7k)
