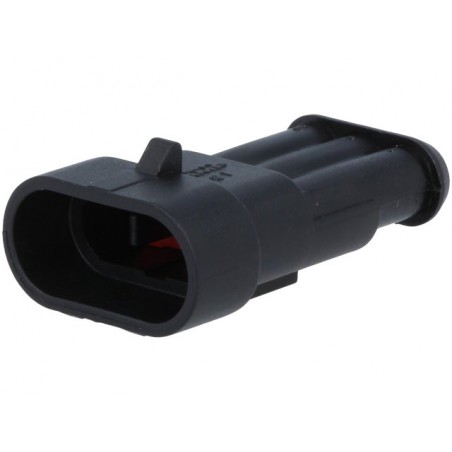

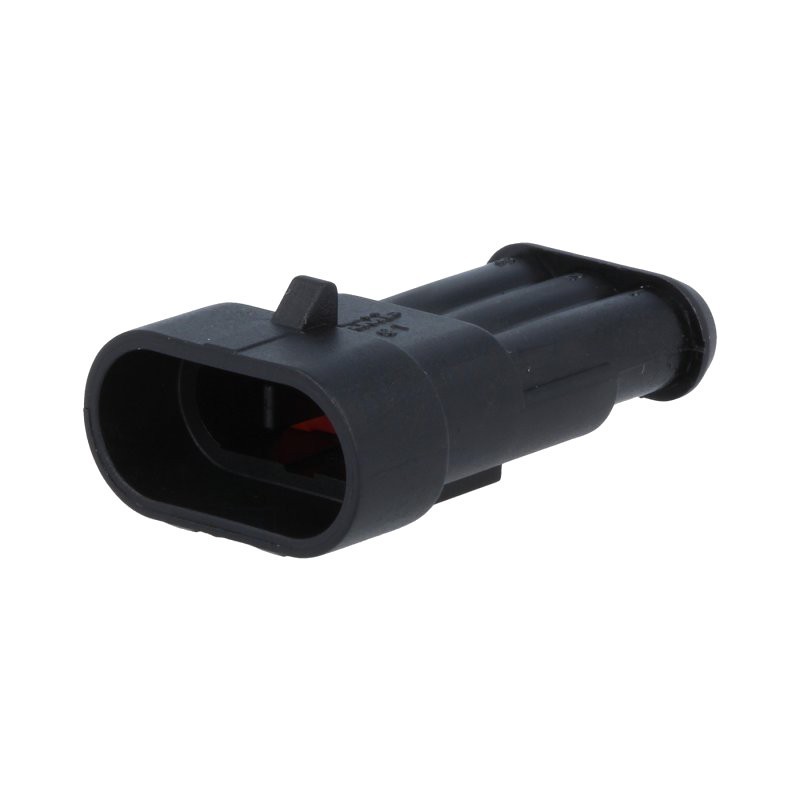

Connector: wire-wire, Superseal 1.5, plug, male, PIN:3, IP67, 24VDC
  • Connector: wire-wire, Superseal 1.5, plug, male, PIN:3, IP67, 24VDC
  • Connector: wire-wire, Superseal 1.5, plug, male, PIN:3, IP67, 24VDC
  • Connector: wire-wire, Superseal 1.5, plug, male, PIN:3, IP67, 24VDC

Connector: wire-wire, Superseal 1.5, plug, male, PIN:3, IP67, 24VDC

: CON03040
€1.00
€0.60 Save €0.40
Tax included

Waterproof, IP67 male two-pin connector.

Accessories not included.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Specification:

Manufacturer TE Connectivity
Connector type wire-wire
Connector series Superseal 1.5
Connector plug
Connector type male
Number of pins 3
Sealing IP67
Operating temperature -40...125°C
Locking system latch
Conform to the norm DIN 40050, IEC 529
Rated voltage 24V DC
Width 25.8mm
Connector variant w/o terminals
Material polyamide





To make a wire-to-wire connection beyond this connector you need the acessories as shown below.

1x Connector male 3 pins (Included)

1x Connector female 3 pins (Not Included)

3x Contact male (Not Included)

3x Contact female (Not Included)

6x Seal for wire (Not Included)



CON03040

Download

Dimensions

Download (89.37k)

super-seal-series

Download (549.67k)
