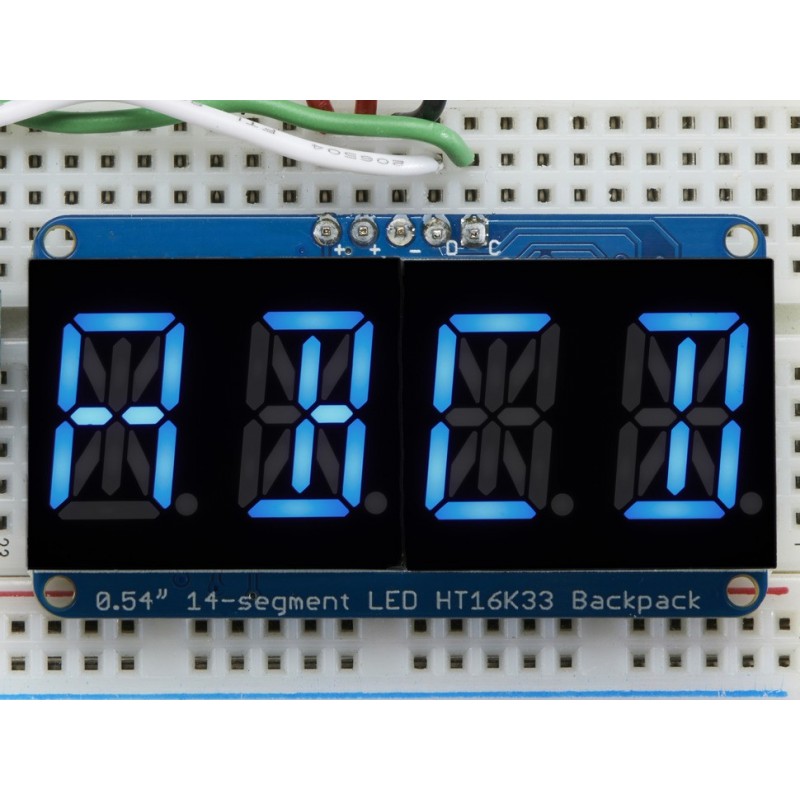

Quad Alphanumeric Display - Blue 0.54" Digits w/ I2C Backpack

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

• DESCRIPTION

  Display, elegantly, 012345678 or 9! Gaze, hypnotized, at ABCDEFGHIJKLM - well it can display the whole alphabet. You get the point. This is a nice, bright alphanumeric display that shows letters and numbers in a beautiful blue hue. It's super bright and designed for viewing from distances up to 23 feet (7 meters) away. Digits have seven white segments on a black surface and we give you a set of two alphanumeric displays as well as a driver board so you can make a clock or a four letter word.

  Like our other LED backpacks, these are end-to-end stackable and by soldering the address jumpers on the back you can have up to 8 backpacks all sharing the same two I2C wires!

  This product comes with:

  • 2 x Ultra-Bright Blue Alphanumeric Display - 0.54" Digit Height for 4 digits total
  • 1 x Adafruit 14-segment LED Alphanumeric Backpack
  • 1 x 5-pin header

  A bit of soldering is required to attach the matrix onto the backpack but its very easy to do and only takes about 5 minutes. Of course, in classic Adafruit fashion, we also have a detailed tutorial showing you how to solder, wire and control the display. If you've been eying alphanumeric displays but hesitated because of the complexity, this is the solution you've been looking for!

  Click here for the version that's just the alphanumeric displays! (no backpack)



• TECHNICAL DETAILS

  This board/chip uses I2C 7-bit addresses between 0x70-0x77, selectable with jumpers.

  Alphanumeric Display Dimensions:

  • 21mm x 25mm x 7mm / 0.8" x 1" x 0.3"
  • Height w/ Pins: 14mm / 0.6"
  • Weight: 4.7g

  Backpack Dimensions:

  • 28mm x 51mm x 4mm / 1.1" x 2" x 0.2"
  • Weight: 5.5g
