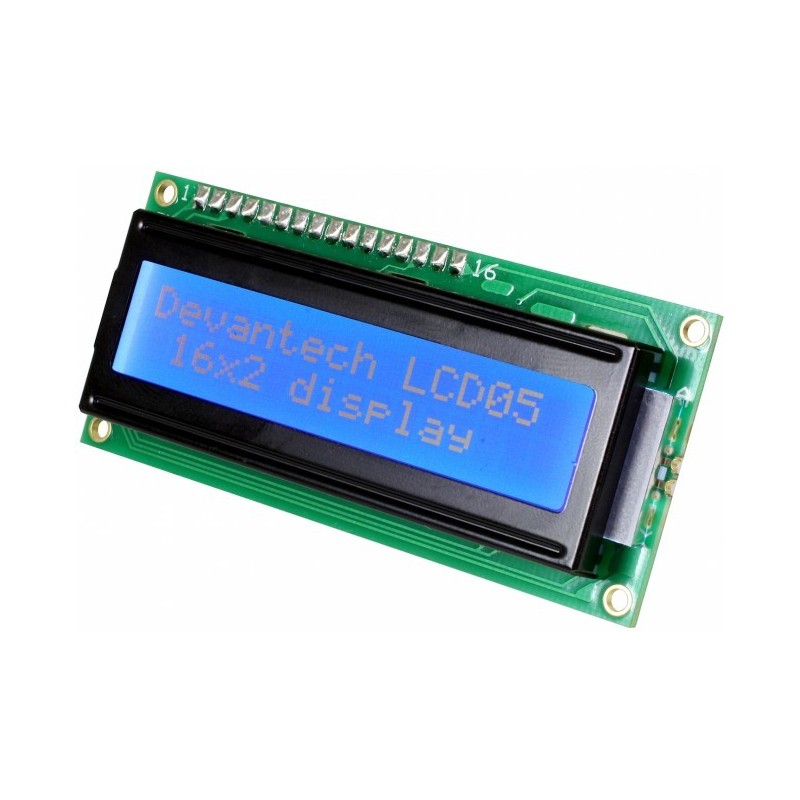

LCD05-16x2-Blue

Specifications:

• Display - 16 characters per row, 2 rows
• Voltage - 5v only required
• Current - 36mA typ. with backlight on
• Modes - I2C or 9600 baud Serial
• Keypad - Automatic scanning of a 3x4 matrix keypad
• Custom characters - up to 8 custom characters easily defined
• Backlight defaults off, and can be turned on under software control
• To visualize the white characters in the blue background the backlight is required to be ON

More information in the product support page.

* Note: Product may not be exactly as shown in image. Contact us for more information.
