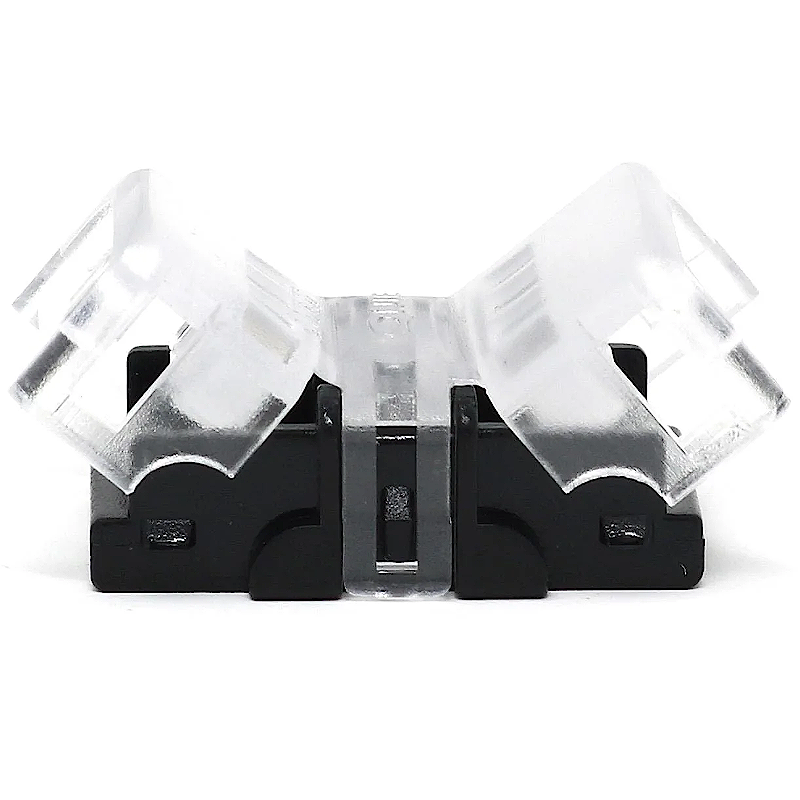

LED Connector Strip to Strip for IP20/30 (IP67 compatible) Adressable Strips 3pin 10mm

:CON02026
€0.50
Tax included

Easily join LED strip light by using these simple to use, robust connectors. No wire strippers or soldering iron required, just pliers to crimp the connector.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Rather than using metal tabs that make surface contact with the LED strip, these connectors pierce through the FPCB.  This method makes a much more reliable electrical connection as well as firmly securing the FPCB.



Type Strip to Strip
IP 20 (Non coated LED Strip)
LED Strip Width 10mm
Conductors 3 Pin



Step 1

Cut LED Strip along to the desired length





Step 2

Remove backing from double sided tape





Step 3

Insert the LED strip into the connector & close connector with pliers





Step 4

Repeat the same procedure for the other side ensuring the polarity is correct





Step 5

Check the both LED strips light up

CON02026
