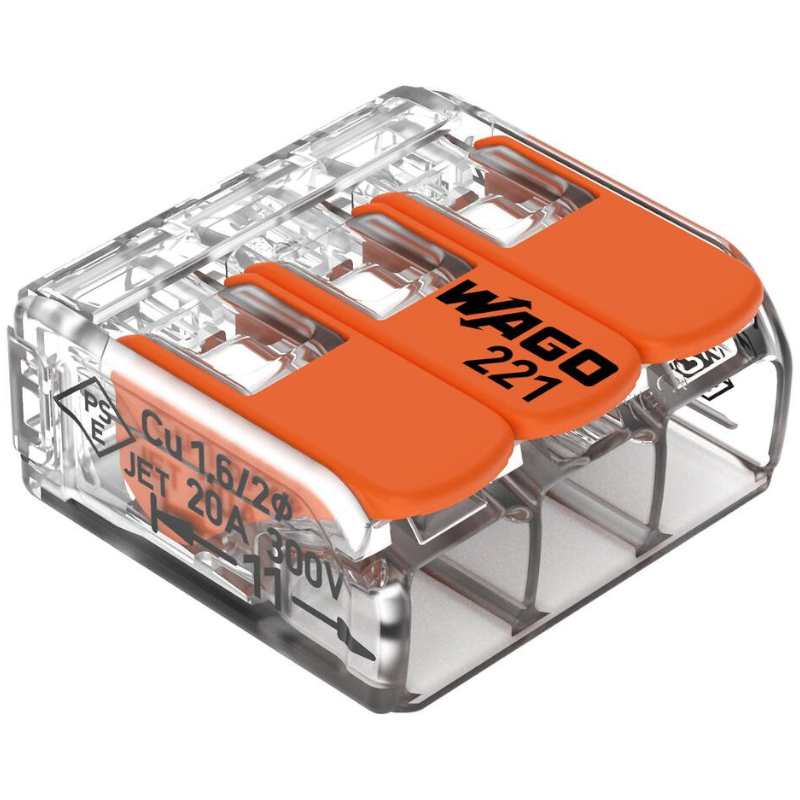

Wago Splicing connector with levers 3-conductor (0.2- 4 mm²) 221-413

: CAB02077
€0.45
Tax included
  • Ease of use – pull the lever up, insert a conductor and push the lever back down
  • Available as 2-, 3- and 5-wire connectors
  • Easily terminate conductors from 0.2 to 4 mm²
  • Connect solid, stranded and fine-stranded conductors
  • Save time for installers and device manufacturers
  • Quickly install devices with higher power consumption
  • Safely install long cable runs with larger conductor cross sections
  • Mounting carrier for installation conforms to standards
Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Environmental requirements
Ambient temperature (operation) +85 °C
Continuous operating temperature 105 °C
Temperature marking per EN 60998 T85

Material data
Note (material data)
Information on material specifications can be found here
Color transparent
Insulation material Polycarbonate (PC)
Flammability class per UL94 V2
Fire load 0.049MJ
Actuator color orange
Weight 2.5g

Physical data
Width 18.8 mm / 0.74 inches
Height 8.4 mm / 0.331 inches
Depth 18.8 mm / 0.732 inche



  • Ratings per IEC/EN - EN 60664
  • Nominal voltage - 450 V
  • Rated surge voltage - 4 kV
  • Rated current - 32 A



Connection

Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross-section 4 mm² / 12 AWG
Solid conductor 0.2 … 4 mm² / 24 … 12 AWG
Stranded conductor 0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor 0.14 … 4 mm² / 24 … 12 AWG
Strip length 11 mm / 0.43 inches
Wiring direction Side-entry wiring

CAB02077
