Uninterruptible Power Supply UPS Module For Jetson Nano, Stable 5V Power Output

Reference : BAT04028

€20.95

Tax included

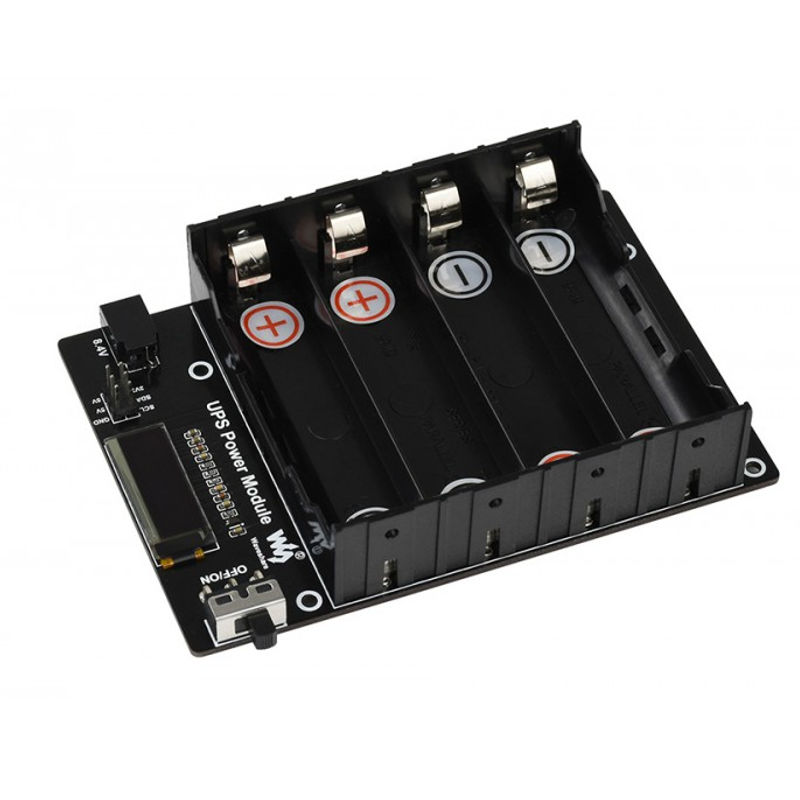

An uninterruptible power supply unit in the form of a module for Jetson Nano. Provides auxiliary power and allows the Jetson Nano to be used while on the move or when another power source fails. The module has space for four Li-Ion 18650 battery cells. It has an additional ON / OFF button that allows you to conveniently turn the Jetson Nano on and off. In addition, on the front of the module there is a 0.91'' display, which shows the current battery values, voltage etc.
This product already comes with an 8.4V charger and a cable to connect your model to the Jetson Nano. All you need is the Jetson Nano and 18650 batteries.

Description

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

UPS Power Module for Jetson Nano, 5V Uninterruptible Power Supply, Multi Battery Protection Circuits

Uninterruptible Power Supply for Jetson Nano

Power Jetson Nano seamlessly from power connection OR the backup batteries

Stable 5V Output, Real Time OLED Monitor

Features at a glance

I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
0.91" OLED for displaying info like batteries voltage, IP address, RAM usage, etc.
Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
Onboard 5V regulator, up to 2.5A continuous output current
Batteries warning indicators, easy to check if the battery is connected correctly
Comes with development resources and manual

Specifications

Output voltage	5V	Charger	8.4V 2A
Control bus	I2C	Dimensions	113 × 79mm
Battery support	18650 Li battery (NOT included)	Mounting hole size	2.5mm

Uninterruptible Power

It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

Designed for Jetson Nano Developer Kit

Mounting holes are compatible with Jetson Nano Developer Kit
Communicating via I2C bus through 6PIN cable, no other IO pin required

Real time monitoring

0.91" OLED for monitoring batteries voltage, current, power, remaining capacity...

When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

Safe and stable circuit design

Protection circuits for over charge/discharge, over current, short circuit, and reverse
along with the equalizing charge feature, more safe and stable

Longer battery life

Supports 4x 18650 batteries

Outline dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/UPS_Power_Module

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Content

Weight: 0.191 kg

The 18650 batteries are NOT included
Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
