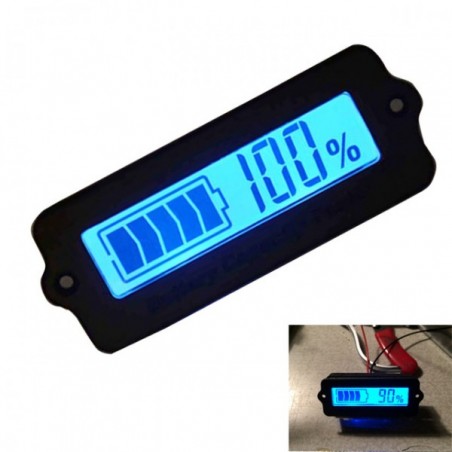

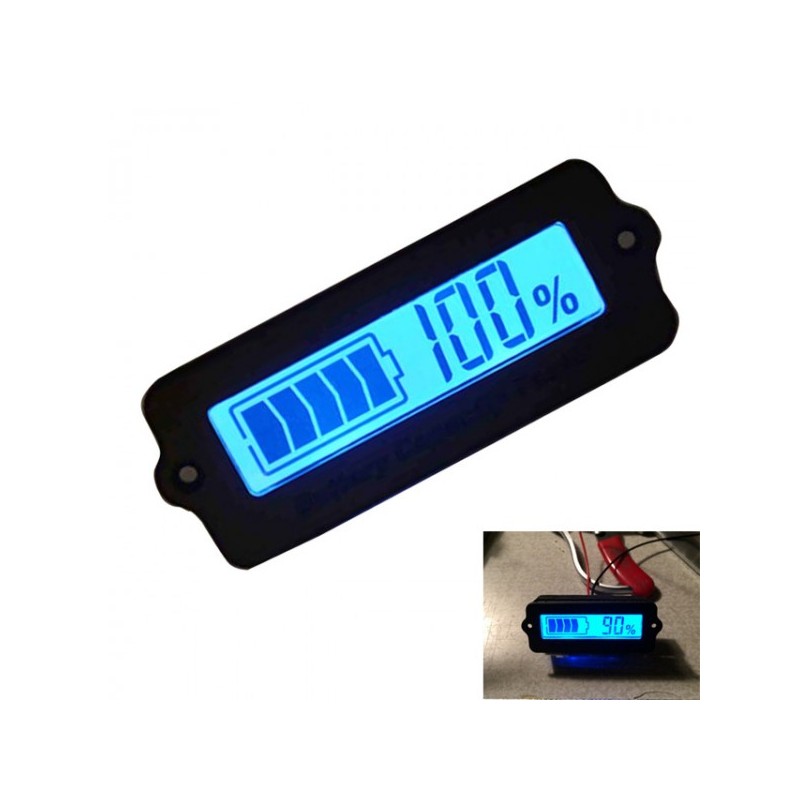

Battery monitor Display 12-24-36-48Vdc - LY6

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications:

• Working Voltage: from 8Vdc to 63Vdc
• Compatible Batteries:
  - lead–acid: 12 V (1P) 24 V (2P) 36 V (3P) 48 V (4P)
  - lithium: 3 cells (3S) ~ 15 cells (15S)
• Working current: < 5 mA
• Working temperature range: 0~40°C
• Accuracy: 1%
• Light color: Blue
• Setup: long press the button on the back of the instrument and with the button pressed connect the battery to be tested, release the button and press several times until the type of battery to be tested is displayed, disconnect and reconnect to the battery, at this point the display will show the percentage and charge level.
• Dimensions (mm): 60x23x9mm
• Weight: 14grams
