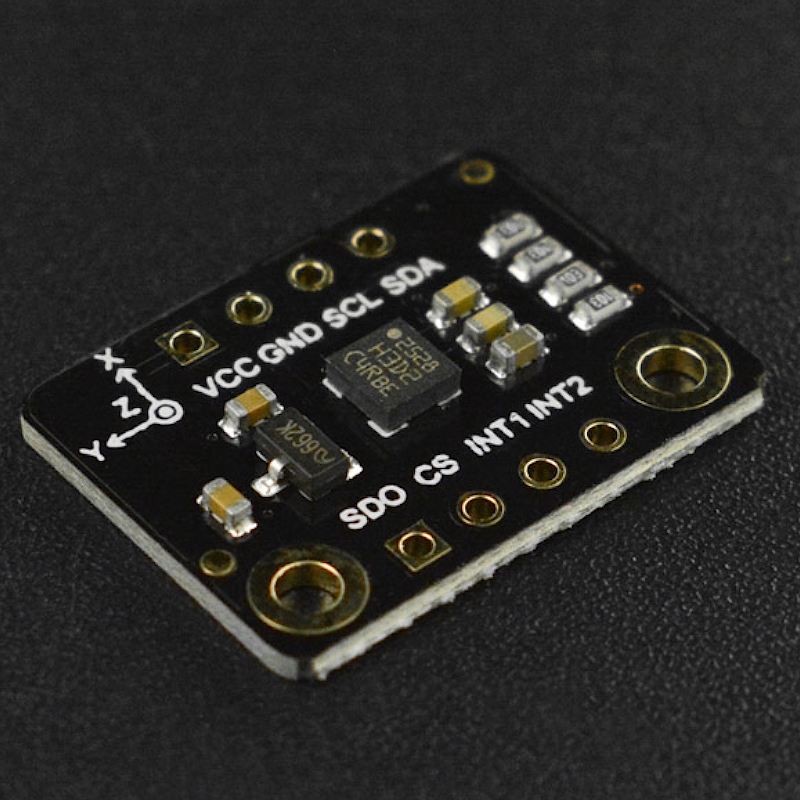

I2C H3LIS200DL Triple Axis Accelerometer Breakout (±100g/±200g) - DFRobot SEN0408

: SEN01041
€14.95
Tax included

H3LIS200DL Triple Axis Accelerometer, a low-power liner accelerometer with low noise and large scale ranges, features ultra-low-power operational modes that can realize smart sleep to wake-up function that allows advanced power saving. Moreover, as this sensor comes with two built-in independent programmable interrupt generators, users can generate a custom interrupt to wake up interrupt. Besides, it has a selectable range scale of ±100 g or ±200 g, capable of measuring acceleration at output data rates from 0.5 Hz to 1 kHz.

If you want to know more about this product, please check its Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

The H3LIS200DL is an ultra low-power(down to 10uA) and low noise 3-axis accelerometer. It has user selectable scales of ±100g/±200g and is capable of measuring accelerations with output data rates from 0.5Hz to 1kHz. The device contains two programmable independent interrupt engines that is able to recognize dedicated inertial events, which makes it more playable.

Fermion: H3LIS200DL Triple-Axis Accelerometer (Breakout)

Connect Diagram

Features

  1. Selectable Large Scale Range: ±100g/±200g

  2. Two programmable interrupts

  3. Smart sleep to wake-up function that allows advanced power saving



Applications

  1. High-speed impact detection and recording

  2. Free-fall detection

  3. Automobile collision test



Specification

  1. Operating Voltage: 3.3 V

  2. Operating Current: minimum 10uA (low-power mode) / 0.3mA-0.4mA (normal mode)

  3. Interface: I2C/SPI

  4. I2C Address: 0x19 (Default) / 0x18 (Selectable)

  5. Selectable Scale: ±100g / ±200g

  6. Frequency: 0.5Hz ~ 1KHz

  7. 8-bit Data Output

  8. Operating Temperature: －40 °C ~ ﹢85 °C

  9. 10000 g High Shock Survivability

  10. ECOPACK®RoHS and “Green” Compliant

  11. Dimension: 15*20 (mm) / 0.59*0.79”



Documents



Shipping List

  1. Fermion: H3LIS200DL Triple Axis Accelerometer (Breakout) x1

  2. 2.54-4P Black Single Row Pin Header x2

SEN01041
