AC-DC Power Supply 5V 3W - HLK-PM01

: FAL04018
€4.95
Tax included

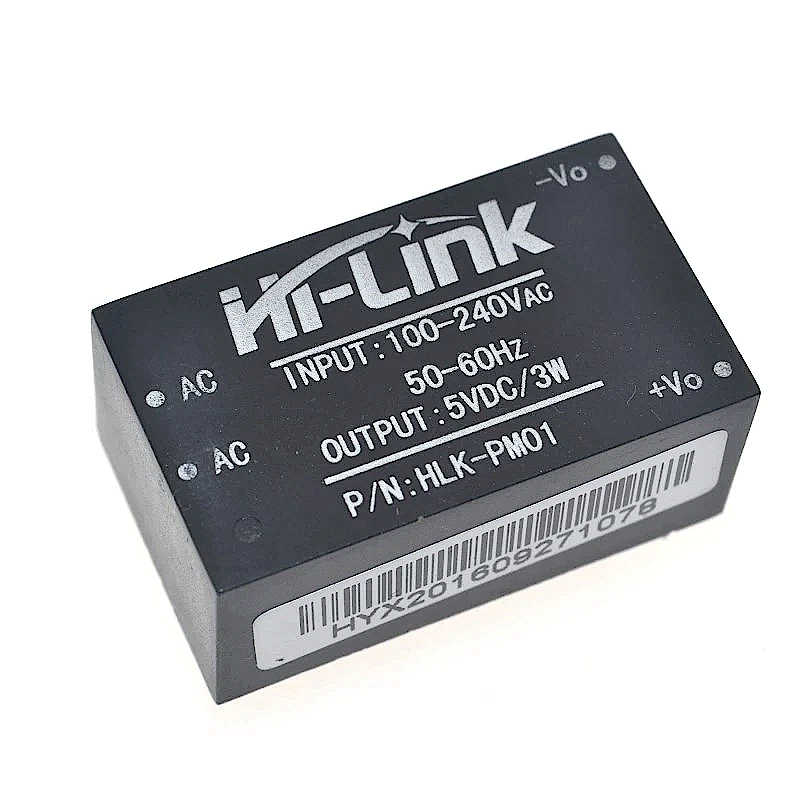

Ultra-compact power supply module HLK-PM01 100-240V / 5V 600mA

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specification:

  1. Rated input voltage: 100-240 VAc

  2. Input voltage range: 90-264 VAc

  3. Maximum input current: ≤0.2 A

  4. Input current surge: ≤10 A

  5. Maximum input voltage: ≤270 VAc

  6. Enter slow start: ≤50 mS

  7. Input Low Voltage Efficiency Vin=110V AC Output full-load: ≥69%

  8. Input High Voltage Efficiency Vin=220V AC Output full-load: ≥70%

  9. Long-term reliability: MTBF≥100000 h

  10. Load rated output voltage: +5±0.1 V DC

  11. Full rated output voltage: +5±0.2 V DC

  12. Short-term maximum output current: ≥1000 mA

  13. The maximum output current for a long time: ≥600 mA

  14. Voltage Regulation: ±0.2 %

  15. Load Regulation: ±0.5 %

  16. Output ripple and noise: ≤50 mVp-p

  17. Output over-current protection: 150-200% of the output maximum load

  18. Output short circuit protection: Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal



FAL04018
