![](https://www.botnroll.com/14111-medium_default/mini-buck-module-2-5-5v-to-5-8-9-12v-1a-max.jpg)

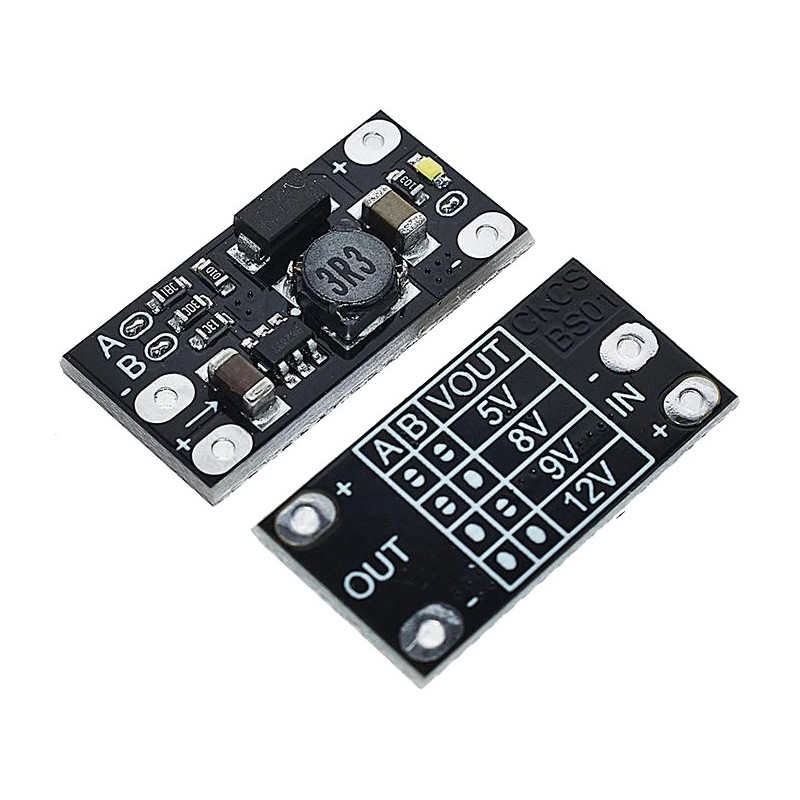

The input must be within 2.5~5Vdc and the output must be select acording the the jumper PADs selection as follows:
A | B | Vout |
0 | 0 | 5V |
0 | 1 | 8V |
1 | 0 | 9V |
1 | 1 | 12V |
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
