7.3inch E-Ink Full-Color e-Paper Display 800x480 170º SPI Low Power with Driver- Waveshare 27875

: LCD01162
€89.90
Tax included

The 7.3 inch e-Paper HAT offers you an innovative way to display visual information in an environmentally friendly and energy-saving manner. With a resolution of 800x480 pixels and the ability to display up to six colors, this display is ideal for applications such as price tags, shelf labels, and industrial displays

If you want to know more about this product, check out its Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

 Features at a glance

  1. Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation

  2. No backlight, keeps displaying last content for a long time even when power down

  3. Ultra low power consumption, basically power is only required for refreshing

  4. Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32)

  5. Optional for e-Paper Driver HAT:

    1. With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano/RDK X3

    2. Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32, etc.

    3. Onboard voltage translator, compatible with 3.3V / 5V MCUs



Specifications

operating voltage

Raw display: 3.3V

display color

E6 full color
(E Ink Spectra 6)

e-Paper Driver HAT: 3.3V/5V

interface

3-wire SPI, 4-wire SPI

grey scale

2

display dimensions

170.20 × 111.20 × 0.91mm

full refresh time

12s

display area

160 × 96mm

refresh power

<70mW(typ.)

dot pitch

0.2 × 0.2mm

standby current

<0.01uA (almost none)

resolution

800 × 480 pixels

viewing angle

>170°





E Ink Spectra 6 technology

E Ink Spectra 6 is a newly launched full color e-paper technology that brings fresh vitality to the e-paper industry with excellent color performance, high resolution and high contrast.
Adopts red, yellow, and blue as the primary colors, it offers more possibilities for e-paper color display, featuring high contrast and high saturation to make images clearer and colors brighter.

E Ink Spectra 6 technology introduction 1

Spectra displays are made of millions of Microcups which suspend the four different colored particles in clear fluid.

E Ink Spectra 6 technology introduction 2

By applying a negative charge the red particles rise to the top and become visible

 E Ink Spectra 6 technology introduction 3

A split charge raises blue particles to the top and become visible





More advanced performance

The resolution is up to 200ppi, features a wider range of operating temperature and faster screen refresh time. And it is more power-saving, aligning with ESG trends for energy efficiency and carbon reduction

Comparison of e-Paper display technologies



Innovative microcup full color technology platform

Using blue charged particles to produce six primary colors, and employing dithering technology to create vivid and saturated full color images.

7.3inch E Ink Spectra 6 (E6) Full-color E-Paper Display, supports full-color image display



Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.



Optional for e-Paper Driver HAT

Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards / Jetson Nano / RDK X3

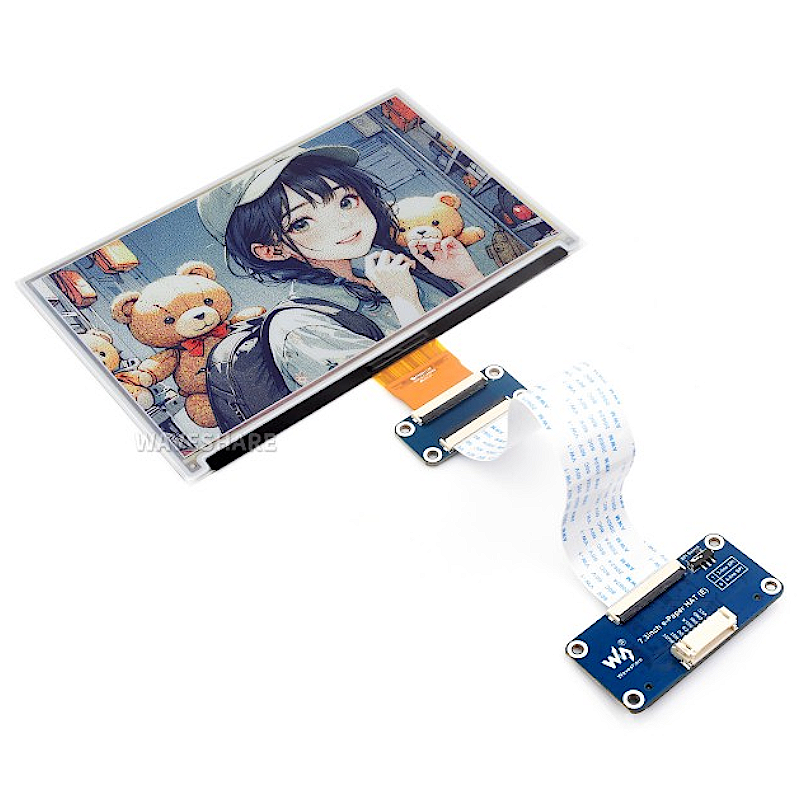

7.3inch E Ink Spectra 6 (E6) Full color E-Paper Display Module, connecting with Raspberry Pi boards and Jetson Nano

* for reference only, the controller boards above are NOT included.



Onboard SPI control interface on e-Paper Driver HAT

for use with controller boards like Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32

e-Paper Driver HAT front view, interface introduction

VCC

3.3V/5V

GND

Ground

DIN

SPI MOSI pin

CLK

SPI SCK pin

CS

SPI chip selection, low active

DC

Data / Command selection (high for data, low for command)

RST

External reset, low active

   BUSY

Busy status output



Outline dimensions

7.3inch E Ink Spectra 6 (E6) Full color E-Paper Display Module, outline dimensions e-Paper Driver HAT, outline dimensions



Resources & Services



WIKI: www.waveshare.com/wiki/7.3inch_e-Paper_HAT_(E)



Package Content

Weight: 0.094 kg

7.3inch e-Paper (E) x1

  1. e-Paper Driver HAT + Adapter board + FFC cable x1

  2. PH2.0 8PIN cable x1

  3. RPi screws pack (2pcs) x1

17.3inch e-Paper (E)27.3inch-e-Paper-HAT-E-6_93.jpg3PH2.0-8PIN-20cm_93.jpg46-angle-M2x8-Copperx2pcs_93.jpg
