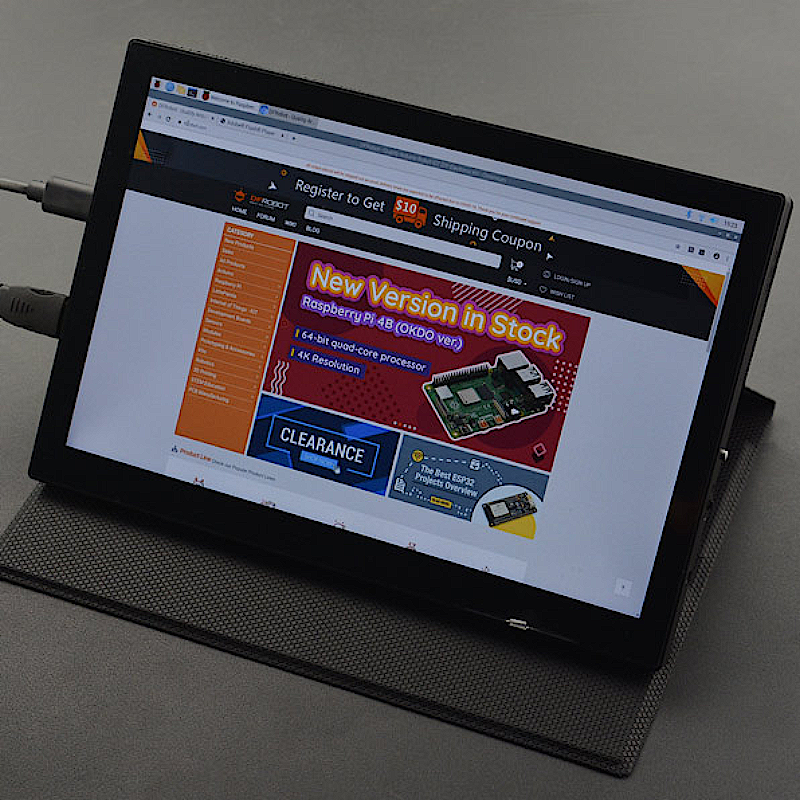

8.9" 1920x1200 HDMI IPS Touch Display (Compatible with Raspberry Pi 4B/3B+&Jetson Nano&LattePanda) - - DFRobot DFR0658

Note: The wiring color is random. This 8.9”1920x1200 IPS Touch Display is most suitable for Jetson Nano, Raspberry Pi 4B/3B+ and LattePanda. It features a small size, plug and play, and 10 touching points, providing a smooth and sensitive touching experience for you. The product comes with left and right loudspeakers that offer high-quality stereo to bring you the perfect user experience.

With 1920*1200 resolution, you can always enjoy high-definition images when developing your projects. What’s more, the HDR technology enhances the contrast between light and dark and further improves the color saturation.

IPS panel is adopted for greatly improving the color displaying ability, especially, it ensures more accurate color balance, hue, and saturation to present realistic colorful images; With a viewing angle of 178°, you can enjoy high-definition picture almost at every angle.

Wiring operation order of the screen and mainboard: 1. HDMI  2. Power supply  3. USB

1. 1920*1200 High-definition resolution, 8.9 inches IPS display

2. 10 touching points, smooth and sensitive experience

3. IPS panel, HDR technology

4. Two loudspeaker, high-quality stereo

5. HDMI port for various applications

6. Come with a leather case, easy to carry, net weight 394.2g

7. Support Raspberry Pi 4B, Raspberry Pi 3B+, NVIDIA Jetson Nano, LattePanda

1. Dimension: 8.9”

2. Panel Type: IPS

3. Resolution: 1920 x 1200

4. Brightness: 300cd/㎡

5. Aspect Ratio: 16 : 10

6. Contrast Ratio: 800 : 1

7. Color Gamut: NTSC 72%

8. Refresh Rate: 60HZ

9. Viewing Angle: 178°

10. Touching Point: 10

11. Support HDR

12. Extra two loudspeakers

13. Power Supply: PD protocol 5-20V

14. Outline Dimension: 211*143*9.5mm/8.31*5.63*0.37”

15. Weight: 395g (Only the Display); 1.2Kg (Display + Card Box)

1. LattePanda Alpha & Delta Display Selection Guide

1. 8.9" 1920x1200 IPS Touch Display  x1

2. Type-c to USB A cable  x1

3. Mini HDMI to HDMI cable x1

4. Double head type-c cable x1

5. Protective Cover x1
