ITEAD 2.8 TFT LCD Touch Shield

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overveiw

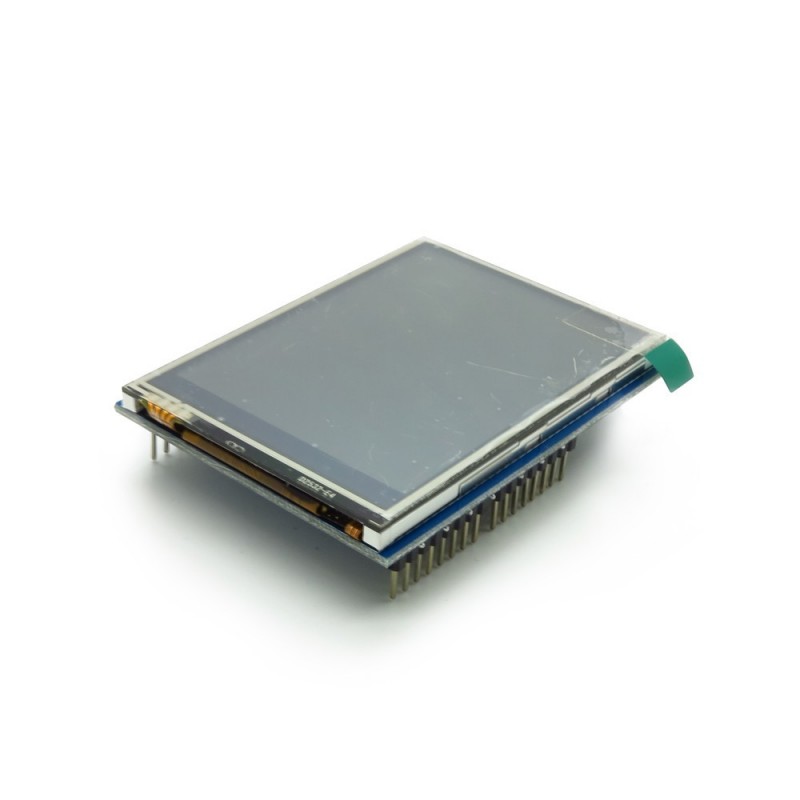

Arduino 2.8" TFT LCD Touch shield is an Arduino UNO/ Mega compatible multicolored TFT display with touch-screen and SD card socket. It is available in an Arduino shield compatible pinout for attachment. The TFT driver is based on ILI9325DS with 8bit data and 4bit control interface.

The Arduino 2.8" TFT LCD Touch shield can work with both 3.3V and 5V, so it can display on Chipkit UNO32 and Simplecortex as well.

Features

• Arduino UNO Rev3 / Mega Shield compatible footprint
• Arduino library UTFT support
• TFTResolution : 240 x 320 pixels
• Size : 2.8"
• Colors : 65K
• Backlight : LED
• Driver IC: ILI9325DS

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.

Datasheet

• DS_IM120417020_2.8_TFT_LCD_Touch_Shield.pdf
• DS_ILI9325DS.pdf

Schematic

• SCH_IM120417020_2.8_TFT_LCD_Touch_Shield.pdf
