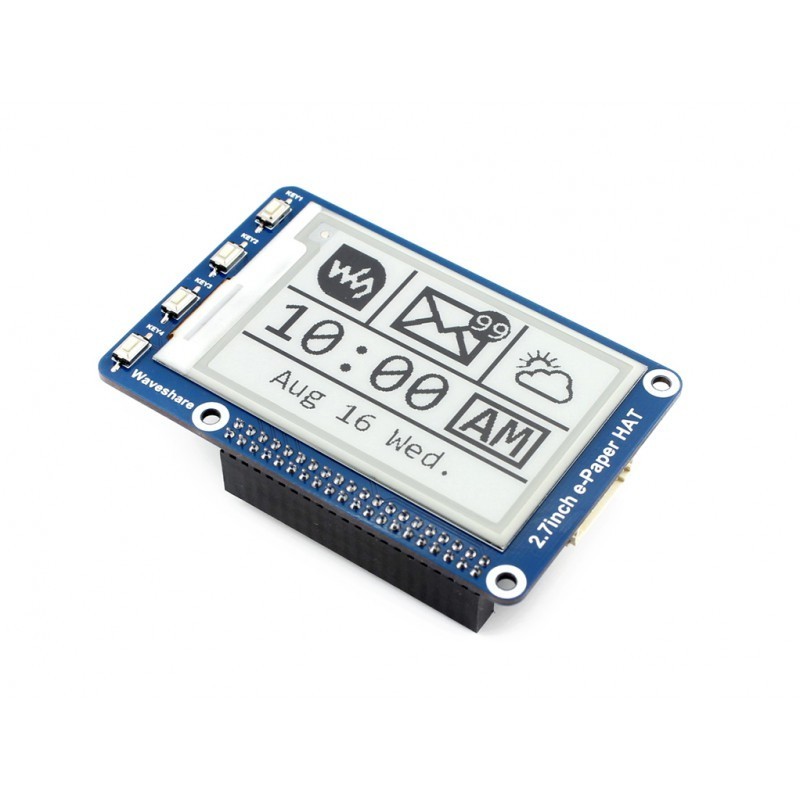

264x176, 2.7inch E-Ink display HAT for Raspberry Pi

: LCD01083
€19.80
Tax included

This is an E-Ink display HAT for Raspberry Pi, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

264x176, 2.7inch E-Ink display HAT for Raspberry Pi, SPI interface

Overview

This is an E-Ink display HAT for Raspberry Pi, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
  • Onboard 4x Keys
  • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 85mm × 56mm
  • Display size: 57.288mm × 38.192mm
  • Dot pitch: 0.217 × 0.217
  • Resolution: 264 × 176
  • Display color: black, white
  • Grey level: 2
  • Full refresh time: 6s
  • Refresh power: 24mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Interface

SYMBOL DESCRIPTION
VCC 3.3V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, low active

Dimensions

2.7inch e-Paper HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/2.7inch_e-Paper_HAT

LCD01083
