DC-DC Multi-output Buck Converter (3.3V/5V/9V/12V) - DFRobot DFR1015

Multiple-output DC–DC converters are essential in a multitude of applications where different DC output voltages are required.

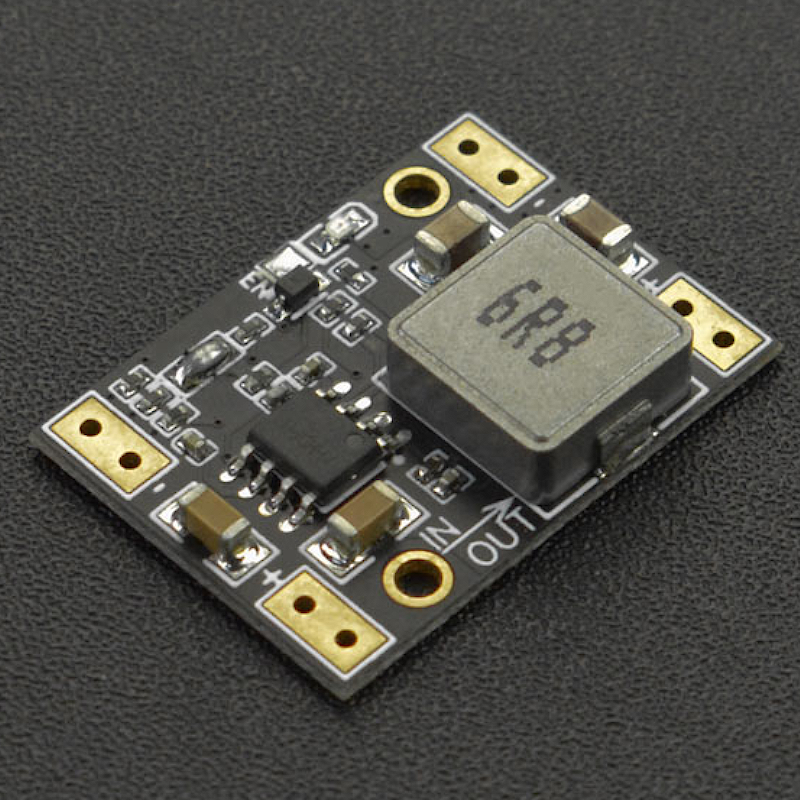

This DC-DC step-down voltage power module converts 7.5V~30V input to an output of 3.3V/5V/9V/12V (default to 5V), which can be selected by short-circuiting the corresponding pads on the back. It withstands up to 5A load current with suitable heat dissipation and has 70℃ over-temperature and overload protections. Besides, there is an onboard LED indicator that shows a solid red light when everything works fine and goes out when the protection mechanism is triggered and the voltage automatically drops to 0.1V.

The multi-voltage buck power module can be used in power control systems for LEDs, robots, drones, servos, low-power motors, and so on.

Instruction

This module outputs 5V by default and the corresponding 5V solder pad is short-circuited. To output other voltages, for instance, 3.3V, please disconnect the 5V pad and short-circuit the 3.3V solder pad.

Note: Since this is a step-down converter, the input voltage should be larger than the output, and it works better with a voltage difference of 2V and above.

Note: The output parameters are measured at 25 ℃, and the heat dissipation (heat sinks) is required for continuous large current load.

Dimension

1. Converts 7.5V~30V input to an output of 3.3V/5V/9V/12V

2. With suitable heat dissipation

3. With 70℃ over-temperature and overload protections

1. Power control systems

1. Input Voltage: 7.5V~30V (24V below is recommended)

2. Rated Output Parameters (Heat dissipation not required)

   1. 3.3V/0~3A 5V/0~3A

   2. 9V/0~2.5A 12V/0~3A

3. Maximum Output Parameters (Heat dissipation required)

   1. 3.3V/5A (16.5W) 5V/5A (25W)

   2. 9V/3.5A (31.5W) 12V/3.5A (42W)

4. Low Ripple: 30mV

5. Soldering Hole Pitch: 2.54mm (can solder pin headers)

6. Dimension: 2.7cm*2cm(length*width)/1.06*0.79"

1. DC-DC Multi-voltage Output Buck Power Module (3.3V/5V/9V/12V) x1
