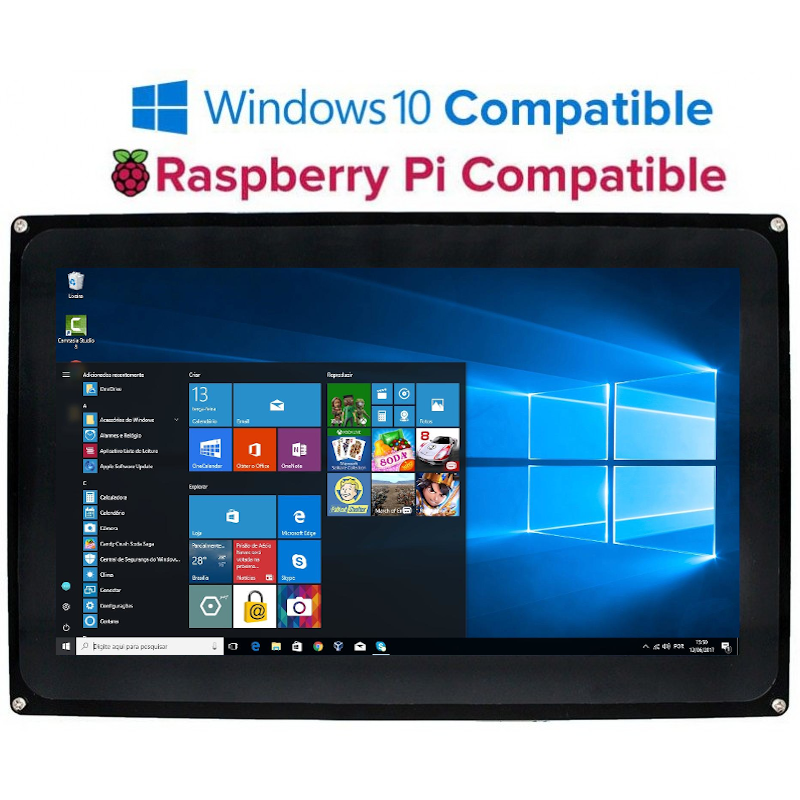

10.1inch HDMI LCD (H) (with case), 1024×600, supports various systems

: LCD01059
€123.90
Tax included

1024×600, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Multi Interfaces

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The LCD and Control Board

  • 1024×600 high resolution
  • Capacitive touch control
  • When works with Raspberry Pi, supports Raspbian, Ubuntu, Windows 10 IoT, single touch, and driver free
  • When work as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free
  • Supports BB Black, comes with Angstrom image
  • Multi video input interfaces: HDMI, VGA, and AV(CVBS)
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • Firmware is upgradable to support more new features (continually updated)

The Case

  • Material : high quality clear Acrylic
  • Comes with bottom holder, 45° tilt angle
  • Features mounting holes for Raspberry Pi 3B/2B/B+/A+/B, and BB Black

Photos

Note: Raspberry Pi in the photos is NOT included.

External Dimension

10.1inch-HDMI-LCD-with-Holder-dimension

Development Resources

Wiki : www.waveshare.com/wiki/10.1inch_HDMI_LCD_(H)_(with_case)

Anti-Piracy

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They're usually some poor copies of our early hardware revisions, and comes with none support service.

To avoid becoming a victim of pirated products, please pay attention to the following features when purchasing:

RPi LCD Anti-Piracy
(Click to enlarge)

Selection Guide

Part Number Resolution LCD Interface Touch Panel Interface For use with Dimension (mm) Touch Panel Type How you feel Feature
3.2inch RPi LCD (B) 320x240 I/O I/O Pi As the Pi 3B Resistive ★★ Low cost
3.5inch RPi LCD (A) 320x480 I/O I/O Pi As the Pi 3B Resistive ★★★ Cost effective
4inch RPi LCD (A) 320x480 I/O I/O Pi 94 × 61 Resistive ★★★☆ IPS screen
4.3inch HDMI LCD 480×272 HDMI I/O Pi 106 × 68 Resistive ★★★★ Cost effective
5inch HDMI LCD 800x480 HDMI I/O Pi 121 x 78 Resistive ★★★★ Low cost
5inch HDMI LCD (B) 800x480 HDMI USB Not only Pi 121 x 76 Resistive ★★★★ Supports various systems
7inch HDMI LCD 1024×600 HDMI I/O Pi 165 × 107 Resistive ★★★★☆ IPS screen
7inch HDMI LCD (B) 800x480 HDMI USB Not only Pi 165 x 107 Capacitive ★★★★☆ Supports various systems
7inch HDMI LCD (C) 1024x600 HDMI USB Not only Pi 165 x 107 Capacitive ★★★★★ IPS screen, Supports various systems
10.1inch HDMI LCD 1024×600 HDMI I/O Pi 235 × 144 Resistive ★★★★☆ Cost effective
10.1inch HDMI LCD (H) 1024x600 HDMI USB Not only Pi 257 x 162 Capacitive ★★★★☆ Supports various systems
10.1inch HDMI LCD (B) 1280x800 HDMI USB Not only Pi 274 × 187 Capacitive ★★★★★ IPS screen, Supports various systems

Note :
Pi 3B = Raspberry Pi 3 Model B
If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.

Have a look :
RPi LCD Comparing



Package Content

Weight: 0.946 kg

  1. 10.1inch Capacitive Touch LCD (D) x 1
  2. HDMI LCD control board x 1
  3. HDMI cable x 1
  4. USB type A plug to micro B plug cable x 1
  5. 40-pin FFC x 1
  6. Case for 10.1inch LCD × 1
  7. Screws pack x 1
  8. Bottom holder x 2
  9. Power adapter EU standard 12V/1A × 1
12345
6+78
