2.0inch LVGL ESP32-S3 IPS Screen with 8M Flash (320×240, I2C and UART) - DFRobot DFR0997

: PCO05173
€16.50
Tax included

ired of the LED matrix display and limited colors of micro:bit? Don't worry! This innovative serial screen is designed to seamlessly integrate with micro:bit, making it incredibly easy to use. It supports I2C and UART communication interfaces, as well as MakeCode graphical programming. Simply send simple commands to the screen and you can display a variety of beautiful color effects.

If you want to know more about this product, please check the Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

The 2.0" Color IPS Display Screen, which supports I2C and UART communication interfaces, is compatible with a variety of microcontrollers including Arduino, ESP32, and micro:bit. Equipped with a 320×240 resolution color display, this screen delivers sharp and vibrant images. It includes a vast collection of over 200 colorful icons, including high-definition PNG images and GIF animations, and dynamic widgets like progress bars, sliders, compasses, gauges, and charts. The screen is ideal for applications such as wearable devices, desktop weather stations, data visualization, and instrument and meter measurements. It offers high-quality visuals, dynamic interactions, and multilingual support, making it a versatile choice for diverse projects.

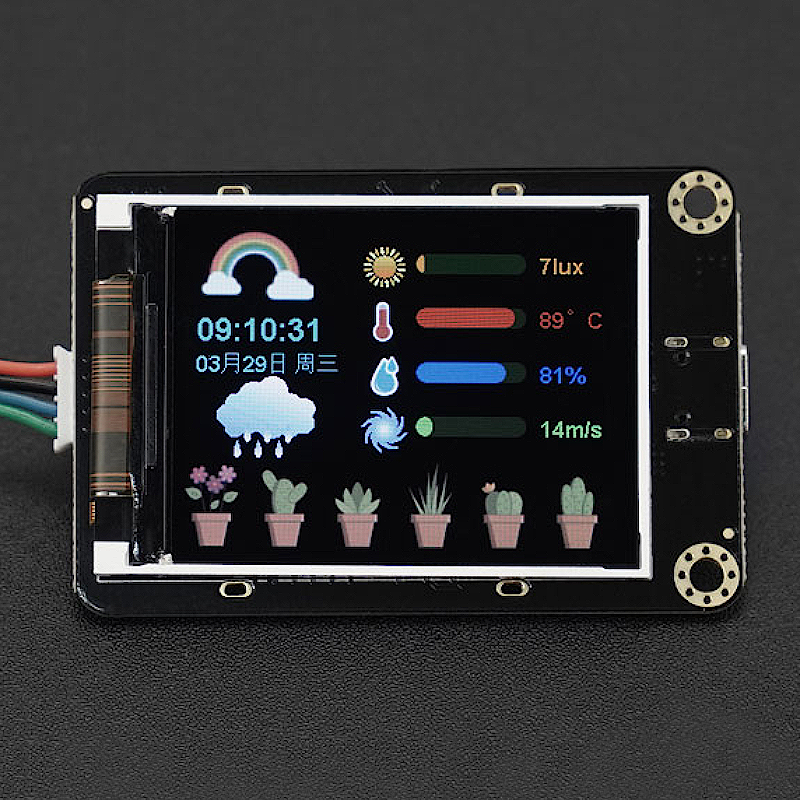

Display Effect of Gravity: 2.0” 320x240 Color Serial Command Screen



Display Effect of Gravity: 2.0” 320x240 Color Serial Command Screen



High-Definition Display and Dynamic Widgets

Equipped with a 320×240 resolution and 16-bit (RGB565) color display, this screen delivers sharp and vibrant images. It includes a vast collection of over 200 colorful icons, including high-definition PNG images and GIF animations, and dynamic widgets like progress bars, sliders, compasses, gauges, and charts. This allows for dynamic and interactive data presentations.



Versatile Communication Interfaces

The 2.0" Color Serial Command Screen supports both I2C and UART communication interfaces, making it compatible with microcontrollers like Arduino (Arduino Uno, Arduino MEGA2560, Arduino Leonardo), FireBeetle ESP32, FireBeetle ESP8266, FireBeetle M0, micro:bit, and more. This flexibility ensures easy integration into a wide range of projects, enhancing the display capabilities of various microcontroller platforms.



Extensive Language and Customization Support

This screen supports the display of international characters in Chinese, English, Japanese, and Korean, making it ideal for educational and local language applications. With an 8M built-in U-disk interface, users can store and display their custom icons and images, offering rich and diverse interface designs.




Smooth and Efficient Operation

The main control chip integrates all the LVGL effects and display functionalities, ensuring smooth operation without noticeable lag. The I2C interface is primarily used for sending display commands, simplifying the user experience, and eliminating concerns about communication speed. The ESP32-S3 chip ensures smooth performance.



Rich Tutorials and Guides

The 2.0" Color Serial Command Screen comes with comprehensive tutorials and guides to support a wide range of applications. These resources ensure that users can fully leverage the screen's capabilities with minimal effort:

  1. Function Description: Detailed explanations of screen pins and functions.

  2. Arduino UNO Tutorial: Includes hardware preparation, software preparation, connection diagrams, and function demonstrations.

  3. micro:bit Tutorial: Covers hardware preparation, software preparation, connection diagrams, and function demonstrations.



Applications

  1. Wearable devices

  2. Desktop weather station

  3. Data collection display

  4. Data visualization display

  5. Instrument and meter measurement



Specification

Basic Specifications

  1. Power Supply Voltage: DC 3.3V~5V

  2. Static Power Consumption: <70mA

  3. Power Interface: PH2.0-4P Gravity interface

  4. Communication Method: I2C/UART

  5. Communication Interface: PH2.0-4P Gravity interface

  6. USB Drive Interface: USB-C

  7. USB Drive Space: 8MB

  8. Dimensions: 62mm×42mm×10mm

  9. Mounting Hole Diameter: 3.0mm



Display Specifications

  1. Size: 2.0 inches

  2. Resolution: 320×240

  3. Display Area: 40.8×30.6mm

  4. Display Color: 16-bit color depth (RGB565)

  5. Viewing Angle: 80/80/80/80

  6. Brightness: 250cd/㎡



Documents



Shipping List

  1. Gravity: I2C & UART 2.0” Color Serial Command Screen x1

  2. Gravity PH2.0-4P Connection Cable x1
