1.47inch LCD Display Module, Rounded Corners, 172x320 Resolution, SPI Interface

:LCD01148
€15.20
Tax included

1.47inch LCD Display Module, Rounded Corners, 172×320 Resolution, SPI Interface

If you want to know more about this product, please check the Wiki Page.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

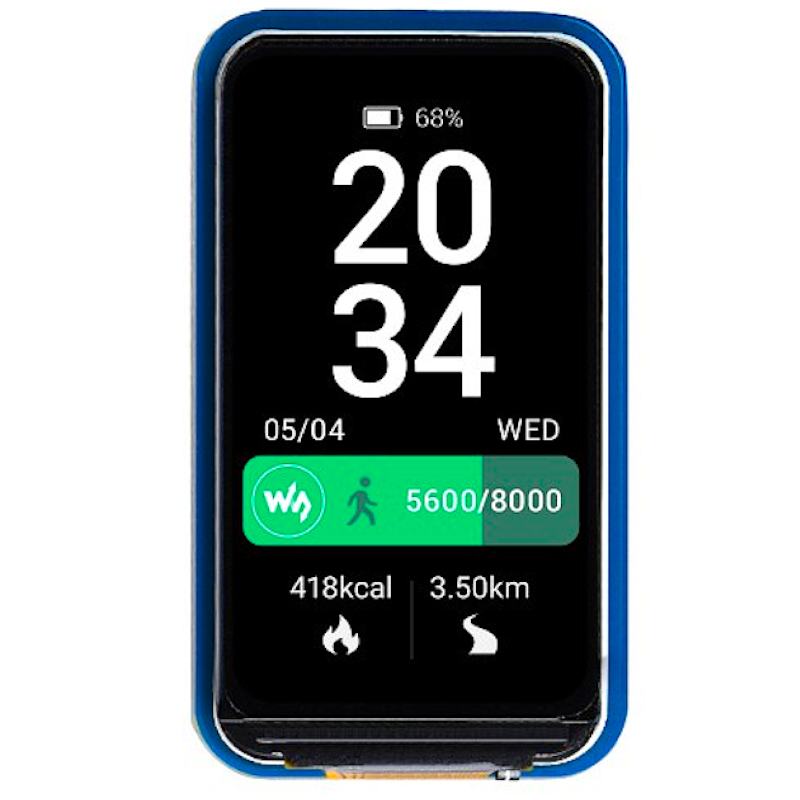

1.47inch LCD Display Module

Embedded ST7789V3 Driver, Using SPI Bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.




Features At A Glance

  1. 172×320 resolution, 262K RGB colors, clear and colorful displaying effect

  2. SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32

  3. Comes with development resources (examples for Raspberry Pi/Arduino/STM32)



Specifications

OPERATING VOLTAGE

3.3V / 5V

RESOLUTION

172 × 320 pixels

COMMUNICATION INTERFACE

4-wire SPI

DISPLAY SIZE

17.39 × 32.35mm

DISPLAY PANEL

IPS

PIXEL PITCH

0.0337 × 0.1011mm

DRIVER

ST7789V3

DIMENSIONS

22.0 × 38.5mm



Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Arduino/STM32



Hardware Connection







Outline Dimensions



Resources & Services


Wiki: www.waveshare.com/wiki/1.47inch_LCD_Module





Package Content

Weight: 0.012 kg

  1. 1.47inch LCD Module x1
  2. PH2.0 8PIN cable x1
