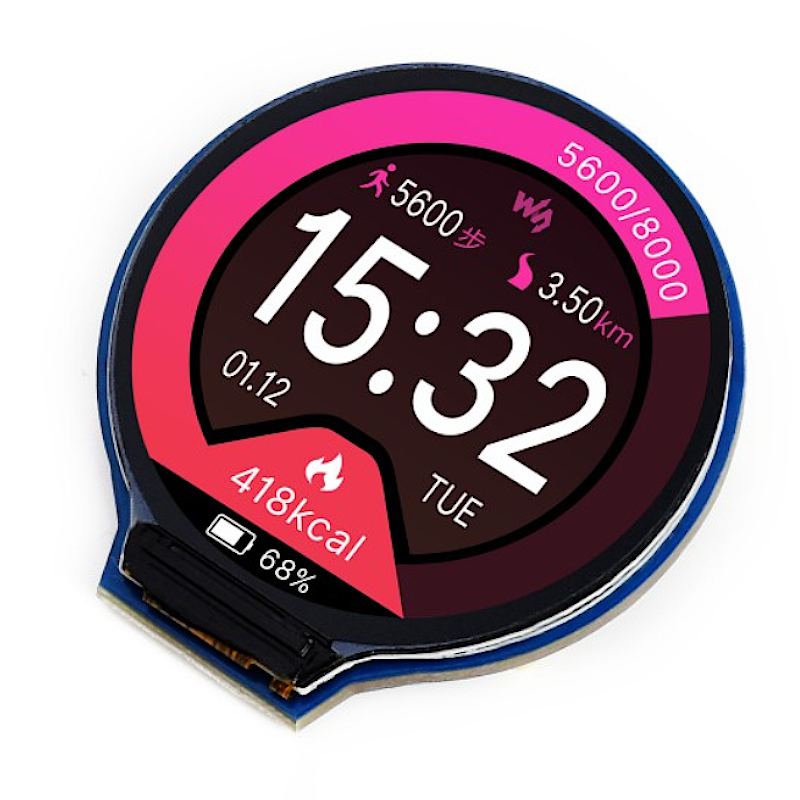

240×240, General 1.28inch Round LCD Display Module, 65K RGB

: LCD01146
€15.60
Tax included

1.28inch LCD Display Module, IPS Screen, 65K RGB, 240 × 240 Resolution, SPI Interface.

If you want to know more about this product, please check the Wiki Page.



Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

1.28" ROUND LCD DISPLAY MODULE

Embedded GC9A01 Driver, Using SPI Bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.



Features At A Glance

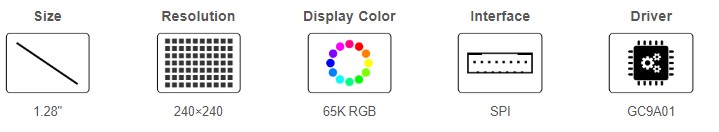

  1. 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
  2. SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
  3. Comes with development resources (examples for Raspberry Pi/Arduino/STM32)


Specifications

OPERATING VOLTAGE

3.3V / 5V

RESOLUTION

240 × 240 pixels

COMMUNICATION INTERFACE

4-wire SPI

DISPLAY SIZE

Φ32.4mm

DISPLAY PANEL

IPS

PIXEL SIZE

0.135 × 0.135mm

DRIVER

GC9A01

DIMENSIONS

40.4 × 37.5mm Φ37.5mm



Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32


VCC

Power (3.3V / 5V input)

GND

Ground

DIN

SPI data input

CLK

SPI clock input

CS

Chip selection, low active

DC

Data/Command selection (high for data, low for command)

RST

Reset, low active

BL

Backlight





Hardware Connection





Outline Dimensions


Resources & Services




Package Content

Weight: 0.015 kg

  1. 1.28inch LCD Module x1
  2. PH2.0 8PIN 20cm cable x1



LCD01146
