240×320, General 2.4inch LCD Display Module, 65K RGB

:LCD01147
€13.80
Tax included

2.4inch LCD Display Module, 65K RGB Colors, 240×320 Resolution, SPI Interface

If you want to know more about this product, please check the Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

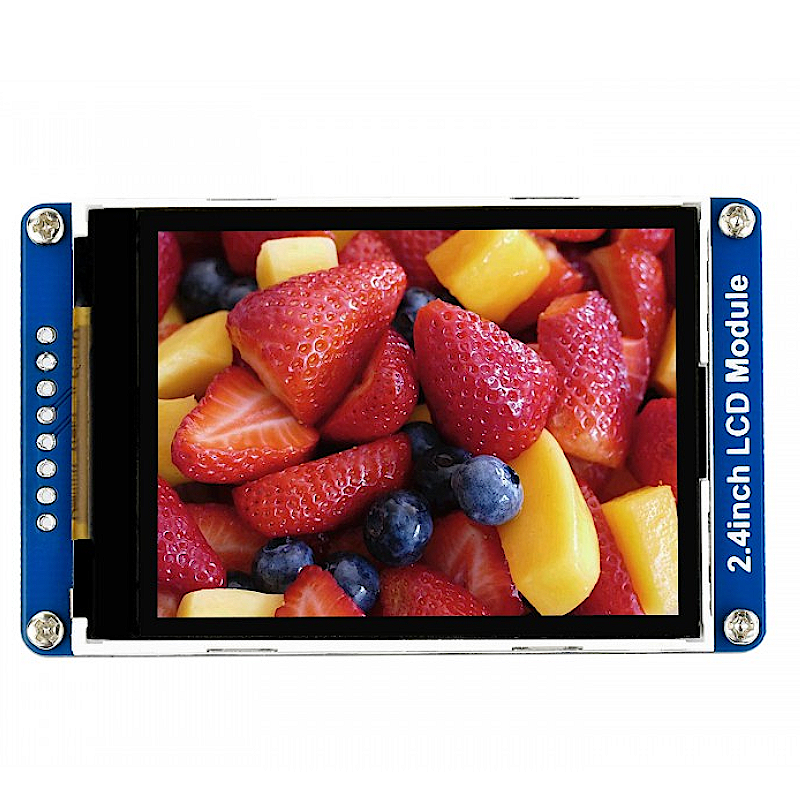

2.4" LCD DISPLAY MODULE

Embedded ILI9341 Driver, Using SPI Bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.




Features At A Glance

  1. 240×320 resolution, 65K RGB colors, clear and colorful displaying effect

  2. SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32

  3. Comes with development resources (examples for Raspberry Pi/Arduino/STM32)



Specifications

OPERATING VOLTAGE 3.3V/5V RESOLUTION 240 × 320 pixels
COMMUNICATION INTERFACE 4-wire SPI DISPLAY SIZE 36.72 × 48.96mm
DISPLAY PANEL TFT PIXEL SIZE 0.153 × 0.153mm
DRIVER ILI9341 DIMENSIONS 70.50 × 43.30mm


Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Arduino/STM32

VCC Power (3.3V/5V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active
BL Backlight


Hardware Connection

Connecting With Raspberry Pi








Resources & Services


Wiki: 2.4inch_LCD_Module





Package Content

Weight: 0.03 kg

  1. 2.4inch LCD Module x1
  2. PH2.0 8PIN 20cm cable x1
  1. 2.4inch-LCD-Module-3_220.jpg2PH2.0-wire-20cm-8PIN_93.jpg
